Return

Item Sales Info

Part Number: 4001-CC-BK / Vendor ID Number: 1192731 / Custom:

Canadian

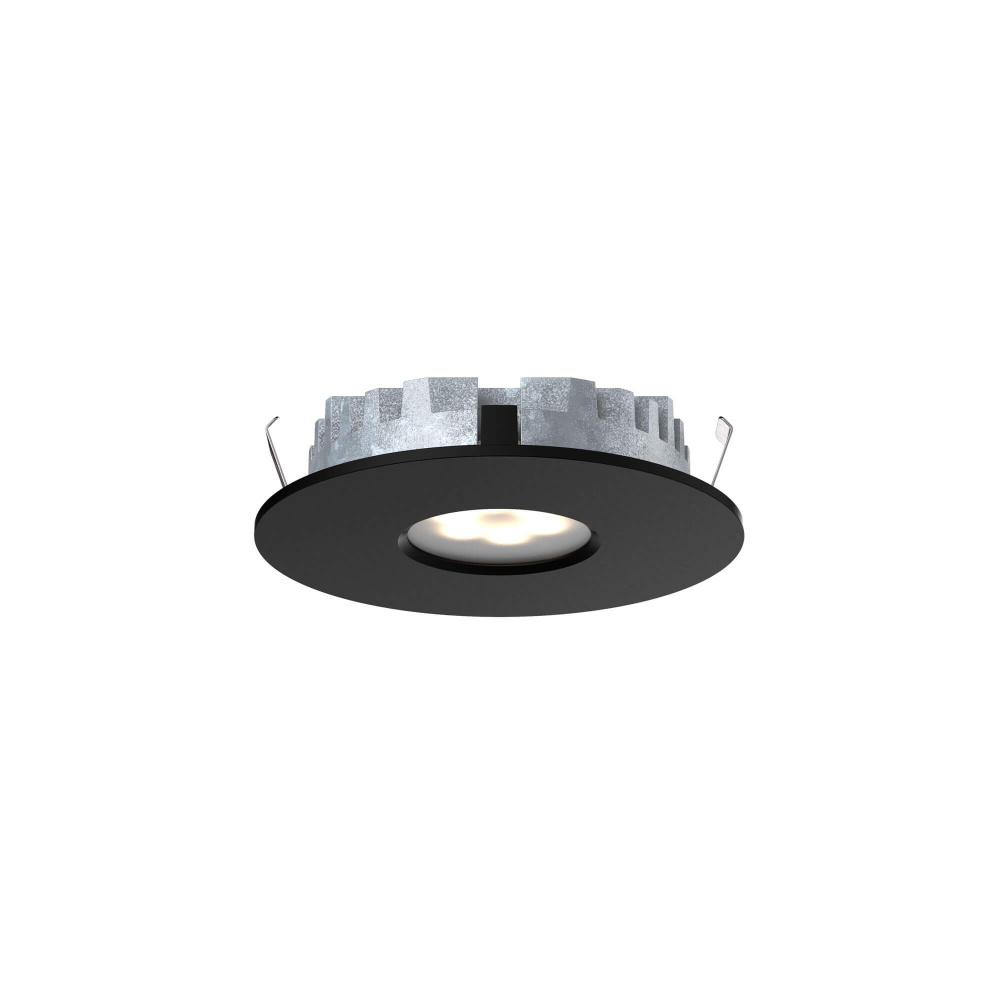

12V LED recessed superpuck, 5CCT

Pack Of: 1

Manufacturer availability unavailable.

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Qty

Product Specification

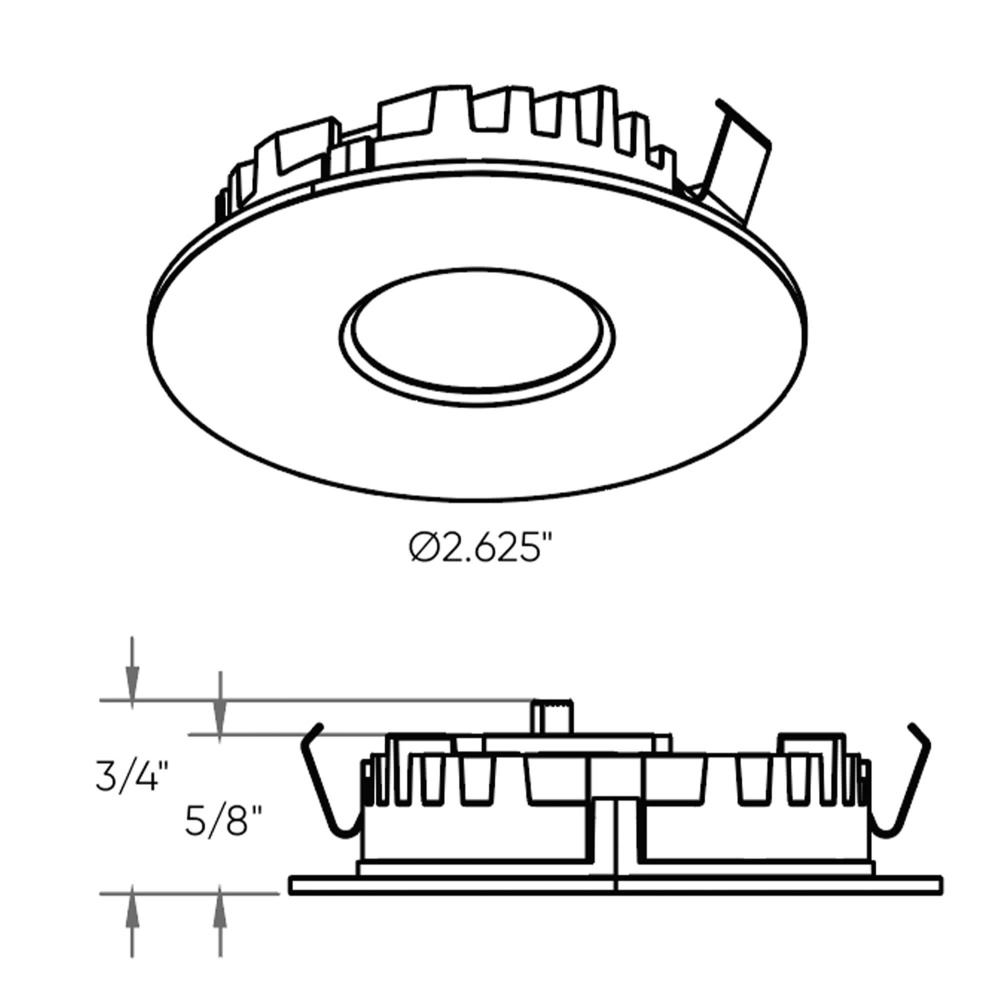

Dimensions

Height: 0.79"

Width: 2.64"

Product Overview

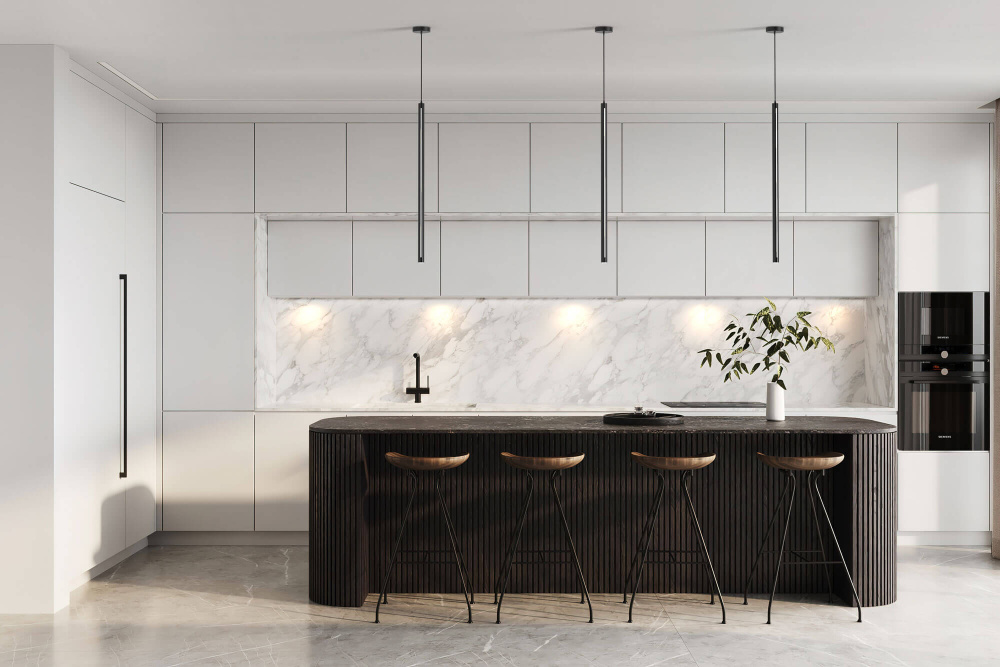

Enjoy low-energy white light in a variety of attractive finishes. These LED pucks are well suited to accent and task lighting under cabinets and in other areas.

Finish:

Additional Information

12V DC LED driver required

12″ input lead with quick connector

24″ interconnection harness included

Smooth 360 degree wide spread

Switch-selectable CCT: 2700K/ 3000 K/ 3500 K/ 4000 K/ 5000 K

Info & Guides

Click Here to View Instruction Sheet

Click Here to View Catalog Page

Technical Details

Details

Category:

Recessed Ltg.

Subcategory:

Other Recessed Ltg.

Finish:

Black /vendors/vendorImages black.jpg

Option:

Dry Rated

Category:

Undercabinet

Subcategory:

Puck

Finish:

Black /vendors/vendorImages black.jpg

Family:

Super Puck

Voltage:

12 V

Number of Bulbs:

1 Bulbs

Bulb Dimmable:

Yes

Bulb Hours:

50000

Kelvin:

2700, 3000, 3500, 4000, 5000

Material:

Aluminum

Ship Carton Height:

3.35

Ship Carton Length:

Ship Carton Width:

1.38

Ship Weight:

0.37

Warranty:

5 Years Limited

Weight:

0.17

Air-Tight (ASTM E283--4):

Beam Angle:

97.1

Bulb CRI:

Country of Origin:

China

Delivered Lumens:

150

Dimmer Type:

Triac

Energy Star:

IC certification:

Yes

Indoor:

Yes

Lens Material:

Glass

Location Rating:

Dry Rated

Max Wattage:

3 W

Maximum Working Temperature:

50°C

Safety Rating:

ETL Approved

Shipping Master Height:

7.87

Shipping Master Length:

15.5

Shipping Master Quantity:

Shipping Master Weight:

Shipping Master Width:

7.25

Wiring:

Hardwired
