Part Number: TLPF21-CC-UNV-BK / Vendor ID Number: 1192731 / Custom:

Canadian

21in Trimless 2in1 with stems, 5CCT, 120-347v, 0-10v/Triac - Black

21in Trimless 2in1 with stems, 5CCT, 120-347v, 0-10v/Triac - Black

500

Pack Of: 1

Manufacturer availability unavailable.

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Qty

Product Specification

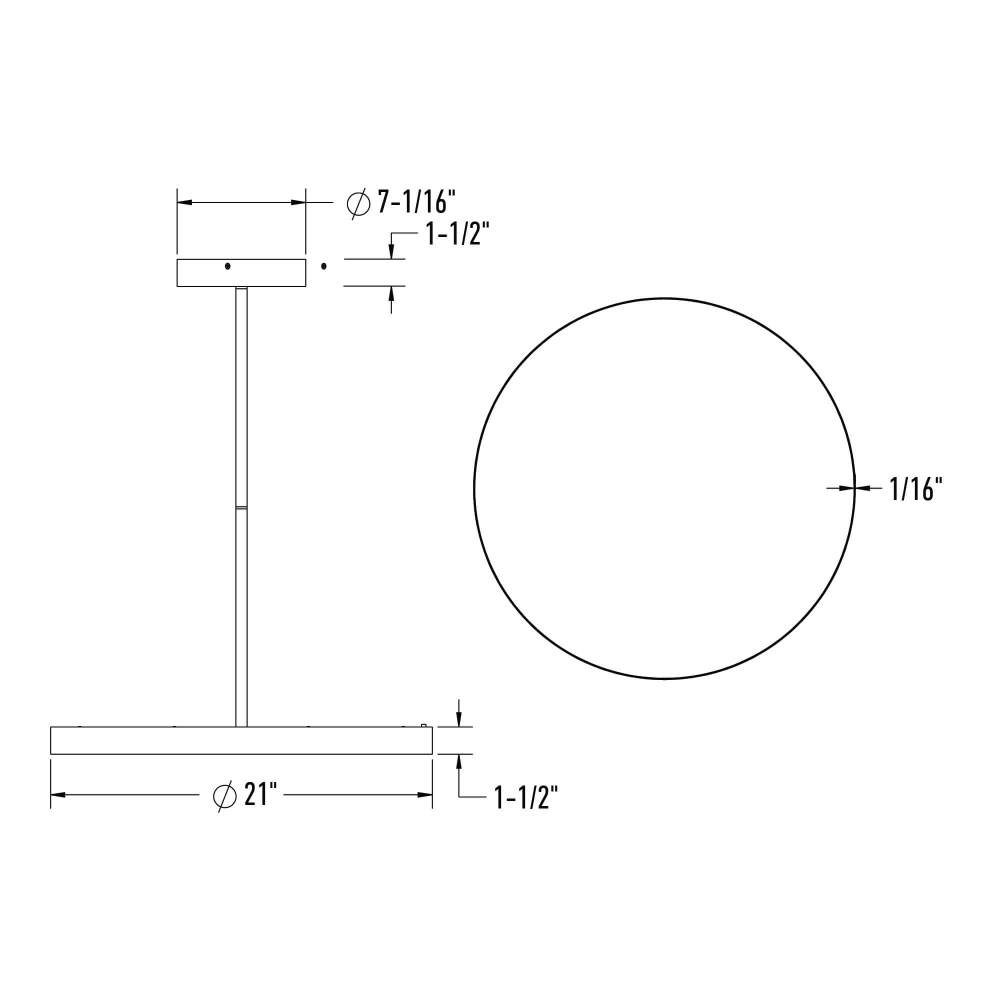

Dimensions

Height: 1.00"

Width: 21.00"

Product Overview

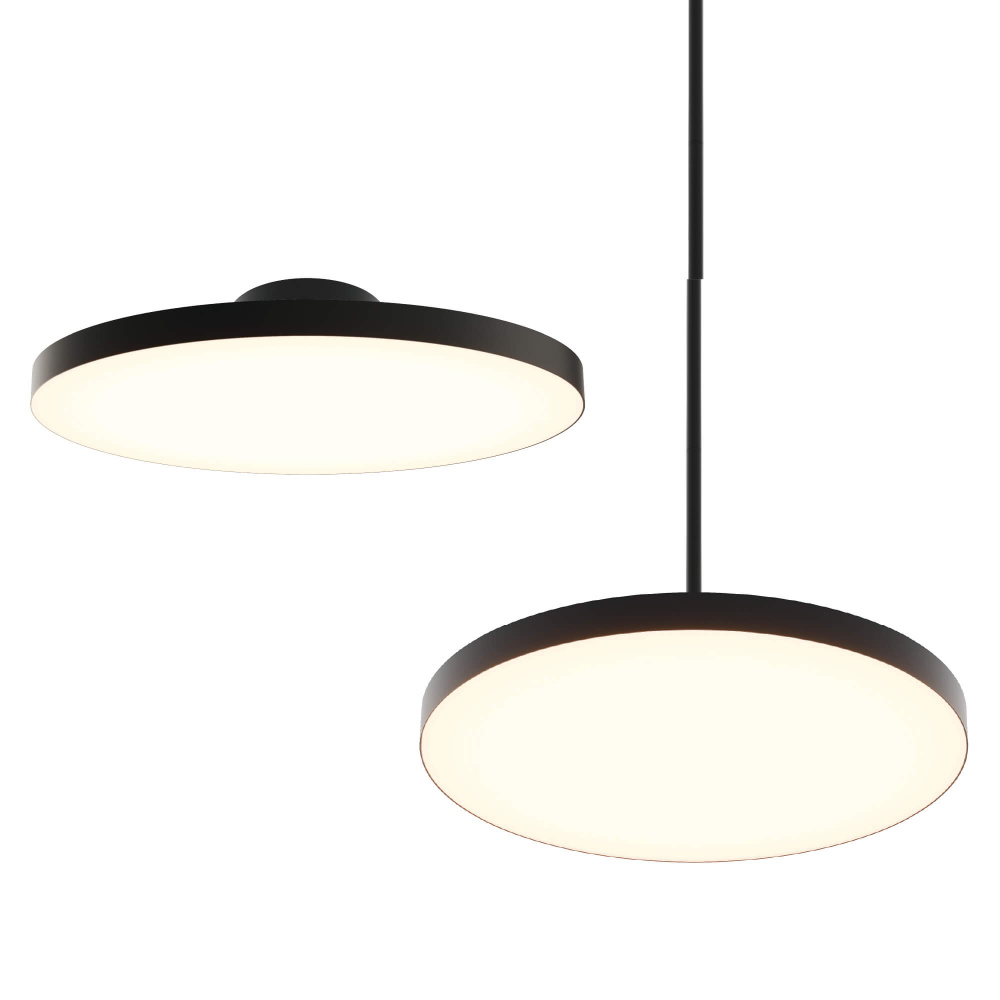

The Fusion combines modern simplicity with flexible installation options, mounting as either a pendant with included power stems or as a semi-flush ceiling fixture. Its sleek, flat-disk design provides even, ambient illumination, making it a versatile choice for a variety of spaces.

Finish:

Additional Information

Adjustable height up to 6′-8″ with quick connect stems

Can be mounted as either a pendant or a ceiling flush mount

Canopy mount on 4″ octagon junction box

Switch-selectable CCT

Universal voltage driver supports 120V, 277V, or 347V input with both TRIAC and 0–10V dimming

Info & Guides

Click Here to View Instruction Manual

Click Here to View Catalog Page

Click Here to View Spec Sheet

Technical Details

Details

Category:

Flush Mounts

Pendants

Subcategory:

Other Flush Mounts

Drum Shade Pendants

Category:

Ceiling

Subcategory:

Pendant

Finish:

Black /vendors/vendorImages black.jpg

Option:

Prop 65 /vendors/vendorImages prop65.png

Title 24 /vendors/vendorImages ca title 24 compliant.jpg

Family:

Fusion

Voltage:

120 V/277 V/347 V

Number of Bulbs:

1 Bulbs

Bulb Dimmable:

Yes

Bulb Hours:

50000

Kelvin:

2700, 3000, 3500, 4000, 5000

Material:

Aluminum

Ship Carton Height:

23.25

Ship Carton Length:

26.5

Ship Carton Width:

5.12

Ship Weight:

16.75

Warranty:

5 Years Limited

Weight:

Beam Angle:

110

Bulb CRI:

Cord Maximum Length:

6.8

Country of Origin:

China

Delivered Lumens:

4400

Dimmer Type:

Triac/ELV/0-10V

Energy Star:

Indoor:

Yes

IP Rating:

IP44

JA8:

Yes

Lens Material:

Location Rating:

Dry Rated

Max Wattage:

45 W

Maximum Torking Temperature:

45°C

Minimum Working Temperature:

-20°C

Prop 65:

Yes

Safety Rating:

ETL Rated

Shipping Master Height:

23.23

Shipping Master Length:

26.57

Shipping Master Quantity:

Shipping Master Weight:

16.75

Shipping Master Width:

5.12

Title 24:

Yes

Wiring:

Hardwired
