Part Number: ATR02-CDW-BK / Vendor ID Number: 1192731 / Custom:
Canadian

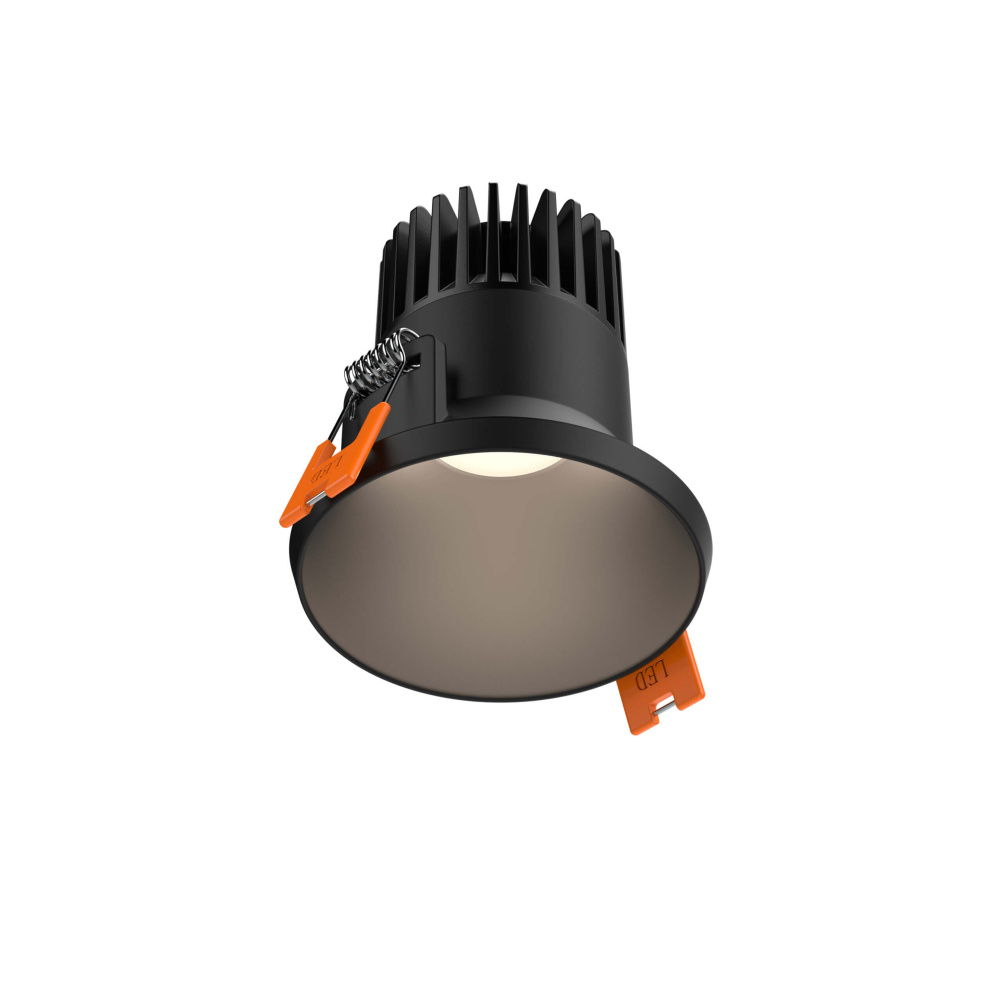

2in Almost Trimless Downlight, 5CCT & Dim-To-Warm - Black

2in Almost Trimless Downlight, 5CCT & Dim-To-Warm - Black

84
00
Pack Of: 1
  • Manufacturer availability unavailable.

  • Qty
    Product Specification

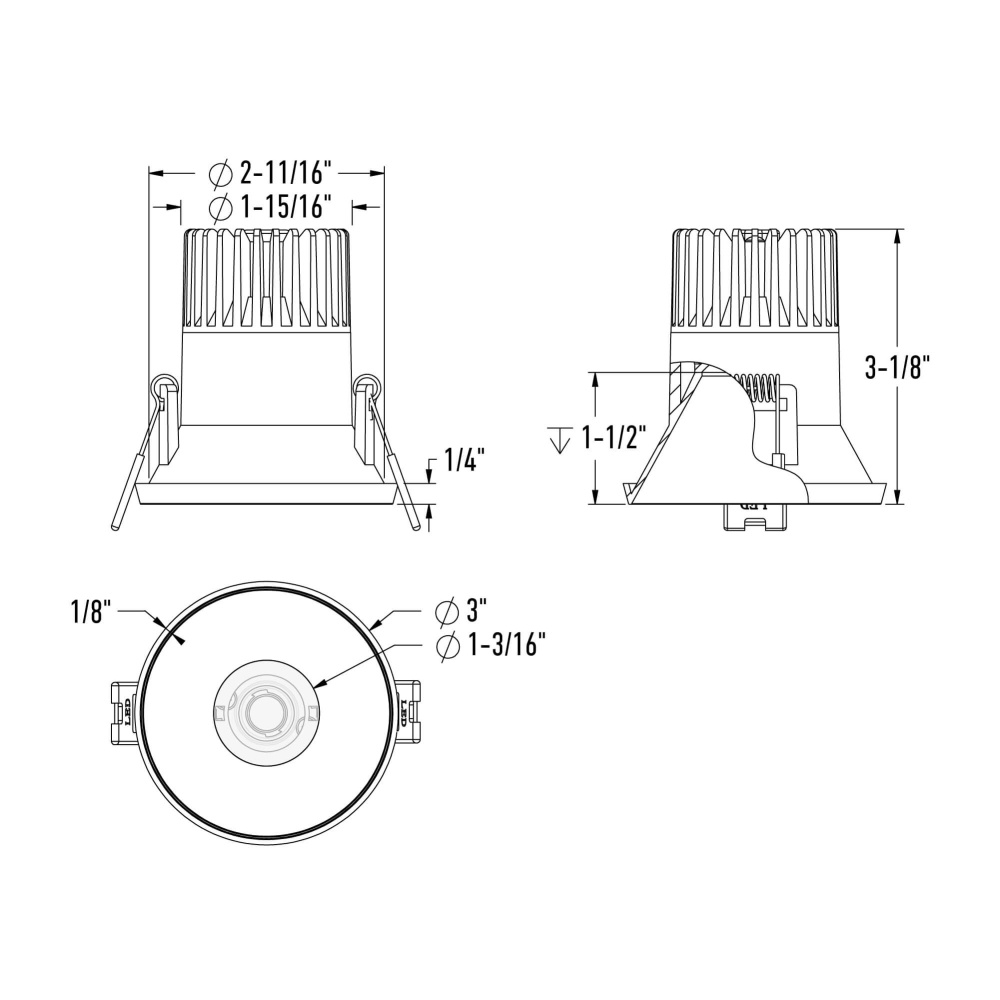

    Dimensions
    Height: 3.13"
    Width: 3.00"
    Product Overview
    The Nest series of recessed fixtures offers an “almost trimless” design for a clean, minimal appearance. Available in 2?, 3?, and 4? sizes, each fixture features 5CCT Color Select and Dim-to-Warm technology, both controlled from the same switch on the transformer, delivering versatile illumination and precise ambiance control.
    Finish:
    Additional Information
    24° beam angle
    6 CCT: 2700, 3000, 3500, 4000, 5000K + Dim-to-Warm (3000–2200K) integrated in a single unit
    Can be daisy chained
    Every fixture includes a junction box with an integrated driver
    Smooth 360° wide spread
    Info & Guides
    Technical Details
    Details
    Category:
    Recessed Ltg.
    Subcategory:
    Other Recessed Ltg.
    Category:
    Recessed
    Subcategory:
    Regressed
    Finish:
    Black /vendors/vendorImages black.jpg
    Option:
    Energy Star /vendors/vendorImages energy star.jpg
    Outdoor
    Title 24 /vendors/vendorImages ca title 24 compliant.jpg
    Family:
    Nest
    Voltage:
    120 V
    Number of Bulbs:
    1 Bulbs
    Bulb Dimmable:
    Yes
    Bulb Hours:
    50000
    Kelvin:
    2700, 3000, 3500, 4000, 5000
    Material:
    Aluminum
    Ship Carton Height:
    4
    Ship Carton Length:
    6.1
    Ship Carton Width:
    4.5
    Ship Weight:
    1
    Warranty:
    5 Years Limited
    Weight:
    0.75
    Air-Tight (ASTM E283--4):
    Yes
    Beam Angle:
    25
    Bulb CRI:
    90
    Country of Origin:
    China
    Delivered Lumens:
    650
    Dimmer Type:
    Triac/ELV
    Energy Star:
    Yes
    IC certification:
    Yes
    Indoor:
    Yes
    IP Rating:
    IP65
    JA8:
    Yes
    Lens Material:
    Plastic
    Location Rating:
    Wet Rated
    Max Wattage:
    8 W
    Maximum Torking Temperature:
    45°C
    Minimum Working Temperature:
    -20°C
    Outdoor:
    Yes
    Safety Rating:
    ETL Rated
    Shipping Master Height:
    8.7
    Shipping Master Length:
    23.6
    Shipping Master Quantity:
    20
    Shipping Master Weight:
    19.6
    Shipping Master Width:
    12.8
    Title 24:
    Yes
    Wiring:
    Hardwired
