Part Number: DRR4-CC-BK / Vendor ID Number: 1192731 / Custom:

Canadian

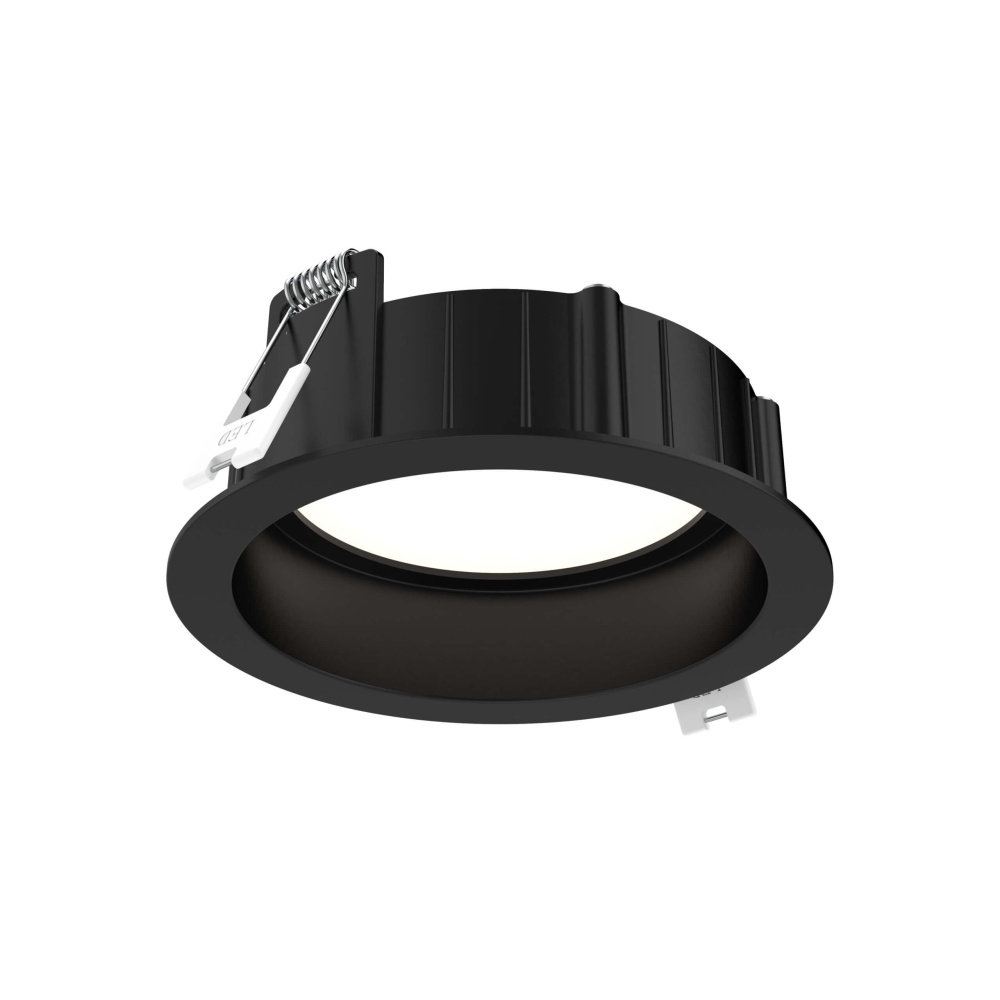

4'' 5CCT 1" deep regressed panel - Black

4'' 5CCT 1" deep regressed panel - Black

Pack Of: 1

Manufacturer availability unavailable.

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Qty

Product Specification

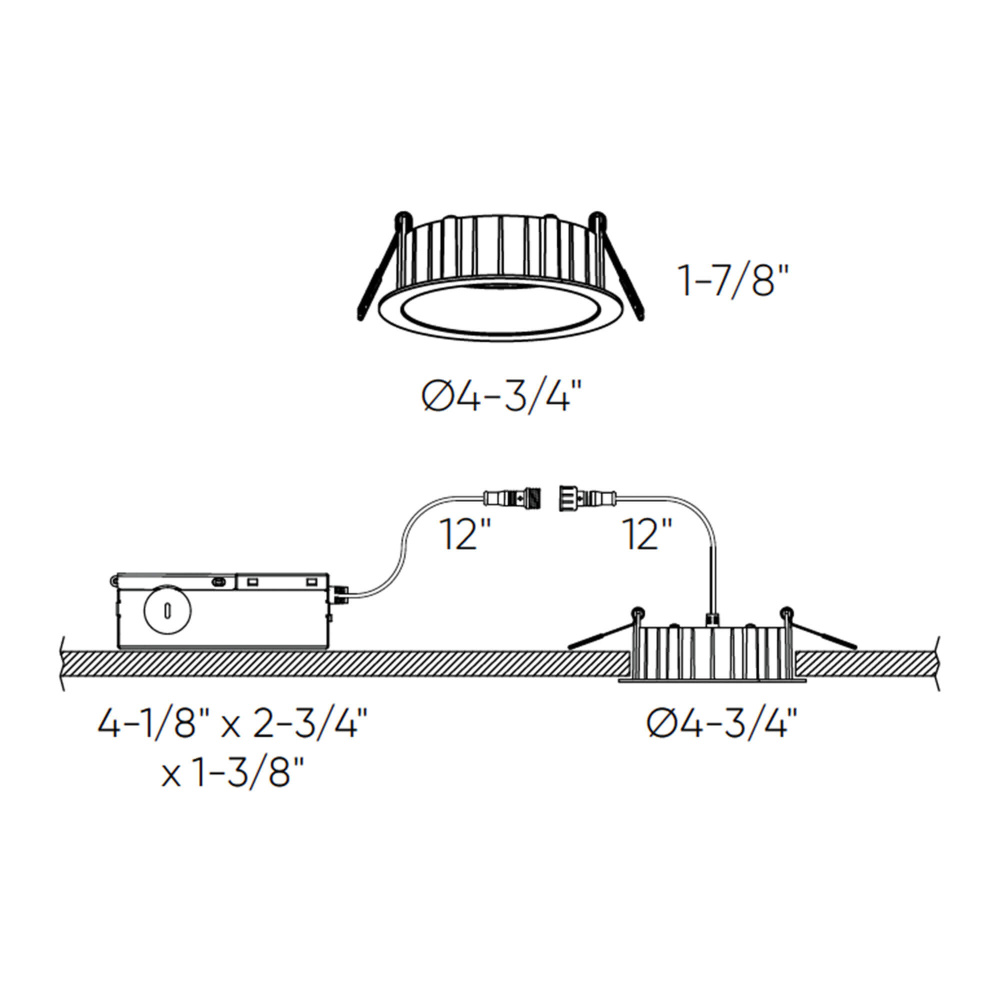

Dimensions

Height: 1.88"

Width: 4.88"

Product Overview

The Notch series of regressed downlights is characterized by a deep-set LED position which greatly reduces glare, neatly packaged in a price-conscious solution to general lighting.

Additional Information

100° beam angle

Can be daisy chained

Every fixture includes a junction box with an integrated driver

Frosted lens

Smooth 360° wide spread

Info & Guides

Click Here to View Instruction Manual

Click Here to View Catalog Page

Click Here to View Spec Sheet

Technical Details

Details

Category:

Recessed Ltg.

Subcategory:

Other Recessed Ltg.

Category:

Recessed

Subcategory:

Regressed

Finish:

Black /vendors/vendorImages black.jpg

Option:

Energy Star /vendors/vendorImages energy star.jpg

Outdoor

Title 24 /vendors/vendorImages ca title 24 compliant.jpg

Family:

Notch

Voltage:

120 V

Number of Bulbs:

1 Bulbs

Bulb Dimmable:

Yes

Bulb Hours:

50000

Kelvin:

2700, 3000, 3500, 4000, 5000

Material:

Aluminum

Ship Carton Height:

3.7

Ship Carton Length:

5.6

Ship Carton Width:

5.5

Ship Weight:

1.2

Warranty:

5 Years Limited

Weight:

Air-Tight (ASTM E283--4):

Yes

Beam Angle:

100

Bulb CRI:

Country of Origin:

China

Delivered Lumens:

1000

Dimmer Type:

Triac/ELV

Energy Star:

Yes

IC certification:

Yes

Indoor:

Yes

IP Rating:

IP44

JA8:

Yes

Lens Material:

Acrylic

Location Rating:

Wet Rated

Max Wattage:

11 W

Maximum Torking Temperature:

40°C

Minimum Working Temperature:

-20°C

Outdoor:

Yes

Safety Rating:

ETL Rated

Shipping Master Height:

Shipping Master Length:

17.13

Shipping Master Quantity:

Shipping Master Weight:

Shipping Master Width:

Title 24:

Yes

Wiring:

Hardwired
