Item Sales Info
Part Number: RC04-CC-20-GMBAZ-TGD / Vendor ID Number: 1192731 / Custom:
Canadian

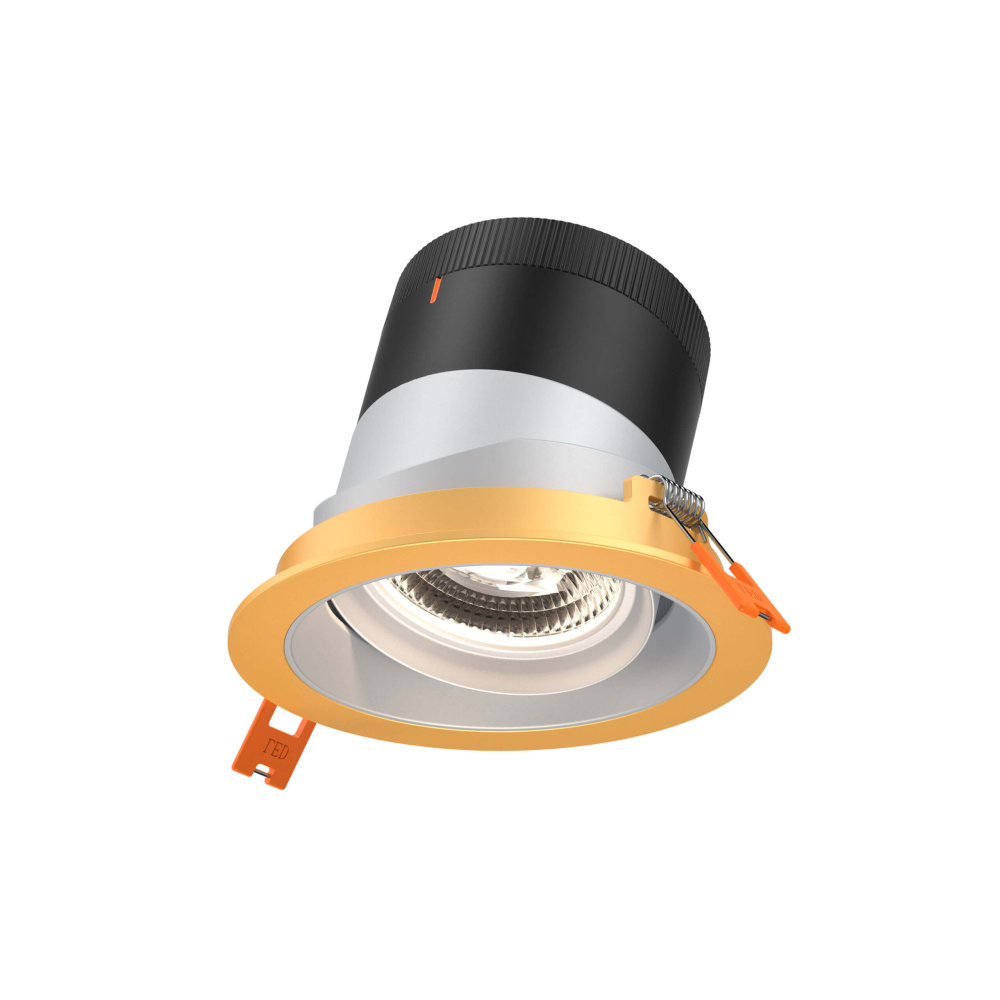

4in Modular Downlight, , 20 degree Beam Angle, Gimbal Reflector, Alzak, Gold Trim

4in Modular Downlight, , 20 degree Beam Angle, Gimbal Reflector, Alzak, Gold Trim

179
74
Pack Of: 1
  • Manufacturer availability unavailable.
    •

    Add To Cart
    Add To Estimate
    Add To Wishlist
    Compare Item
    Qty
    Product Specification

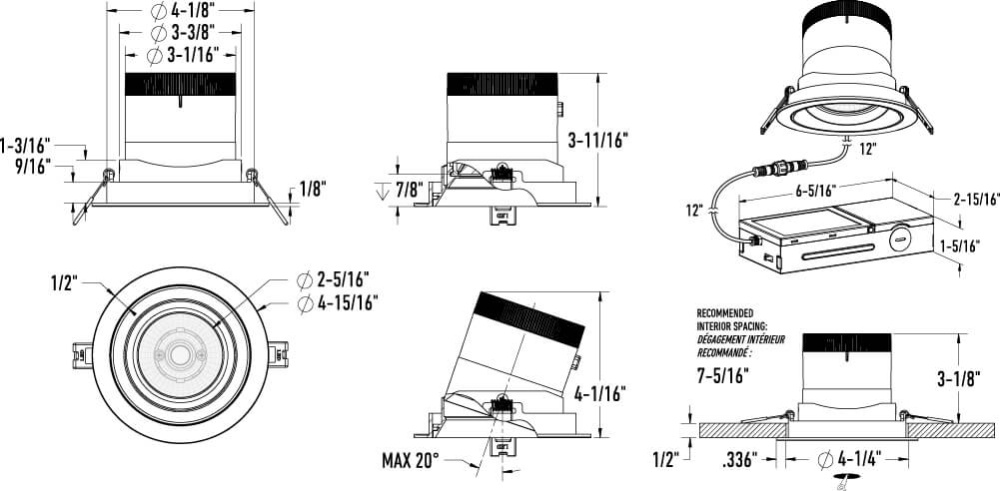

    Dimensions
    Height: 1.78"
    Width: 3.83"
    Product Overview
    A versatile recessed lighting solution available in three-, four-, and six-inch sizes, featuring customizable finishes, trims, lenses, and reflectors, with options for standard, sloped ceiling, and trimless installations, all with multi-voltage compatibility. Perfect for commercial or residential spaces. EXPANDED FLEXIBILITY! (Coming soon) Now upgraded with a gimbal reflector and wallwash trim, Moda adds 154 new configuration options for greater design flexibility.
    Finish:
    Specific Products:
    Additional Information
    Can be daisy-chained
    Customizable trims and reflector shapes and colors
    Every fixture includes a junction box with an integrated dimmable driver
    Multi-watt output allows you to choose from three wattage settings for customizable brightness directly on the jbox
    Regressed, Slope ceiling and Trimless options
    Info & Guides
    Click Here to View Instruction Manual
    Click Here to View Catalog Page
    Click Here to View Spec Sheet
    Technical Details
    Details
    Category:
    Recessed Ltg.
    Subcategory:
    Other Recessed Ltg.
    Category:
    Recessed
    Subcategory:
    Modular
    Finish:
    Alzak
    Option:
    Energy Star /vendors/vendorImages energy star.jpg
    Outdoor
    Title 24 /vendors/vendorImages ca title 24 compliant.jpg
    Family:
    Moda
    Voltage:
    120 V/277 V/347 V
    Number of Bulbs:
    1 Bulbs
    Bulb Dimmable:
    Yes
    Bulb Hours:
    50000
    Kelvin:
    2700, 3000, 3500, 4000, 5000
    Material:
    Aluminum
    Ship Carton Height:
    3.5
    Ship Carton Length:
    12
    Ship Carton Width:
    9.65
    Ship Weight:
    2.5
    Warranty:
    5 Years Limited
    Weight:
    0.2
    Air-Tight (ASTM E283--4):
    Yes
    Beam Angle:
    20
    Bulb CRI:
    90
    Country of Origin:
    China
    Delivered Lumens:
    2200
    Dimmer Type:
    Triac/ELV
    Energy Star:
    Yes
    IC certification:
    Yes
    Indoor:
    Yes
    IP Rating:
    IP44
    JA8:
    Yes
    Lens Material:
    Glass
    Location Rating:
    Wet Rated
    Max Wattage:
    16 W/20 W/24 W
    Maximum Torking Temperature:
    40°C
    Minimum Working Temperature:
    -20°C
    Outdoor:
    Yes
    Safety Rating:
    ETL Rated
    Shipping Master Height:
    6.3
    Shipping Master Length:
    21.5
    Shipping Master Quantity:
    50
    Shipping Master Weight:
    10.9
    Shipping Master Width:
    21.5
    Title 24:
    Yes
    Wiring:
    Hardwired
