Part Number: 5006-FR-CC-WH / Vendor ID Number: 1192731 / Custom:
Canadian
6" recessed panel, 5CCT, 2hrs Fire rated

6" recessed panel, 5CCT, 2hrs Fire rated

61
30
Pack Of: 1
  • Manufacturer availability unavailable.
    •

    Add To Cart
    Add To Estimate
    Add To Wishlist
    Compare Item
    Qty
    Product Specification

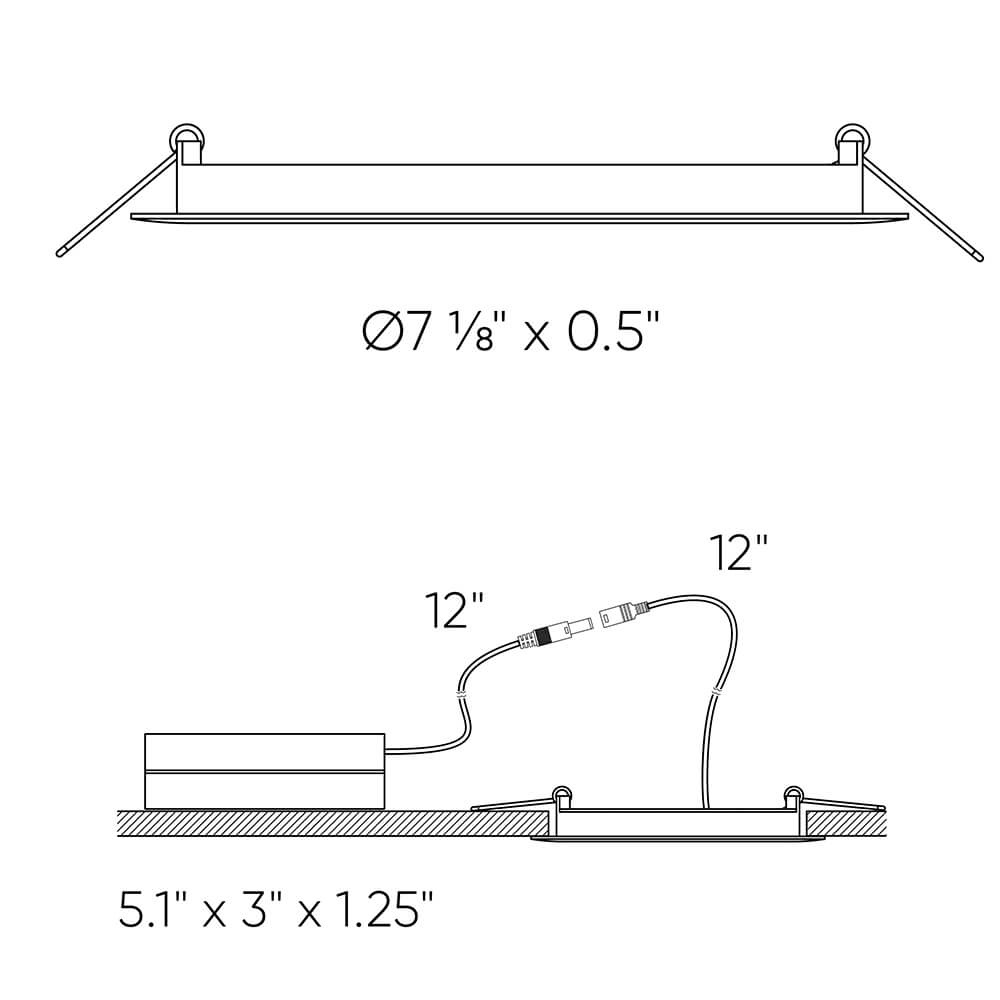

    Dimensions
    Height: 1.13"
    Width: 7.13"
    Product Overview
    Our new LED Panel lights are more accessible than ever before. The sleek and minimal construction allows for the easiest of installations.
    Additional Information
    2-hour fire-rated without additional housing or hardware (in accordance with UL 263, ASTM E119, and CAN ULC S101)
    Every fixture includes a junction box with an integrated driver
    IC certification (suitable for direct contact with insulation)
    Over 35,000 hours of service life
    Switch-selectable CCT: 2700 K/3000 K/3500 K/4000 K/5000 K
    Info & Guides
    Click Here to View Instruction Sheet
    Click Here to View Catalog Page
    Click Here to View Spec Sheet
    Technical Details
    Details
    Category:
    Recessed Ltg.
    Subcategory:
    Other Recessed Ltg.
    Finish:
    White /vendors/vendorImages white.jpg
    Option:
    Title 24 /vendors/vendorImages ca title 24 compliant.jpg
    Outdoor
    Wet Rated
    Prop 65 /vendors/vendorImages prop65.png
    Category:
    Recessed
    Subcategory:
    Slim Panel
    Finish:
    White /vendors/vendorImages white.jpg
    Option:
    Outdoor
    Prop 65 /vendors/vendorImages prop65.png
    Title 24 /vendors/vendorImages ca title 24 compliant.jpg
    Family:
    Excel
    Voltage:
    120 V
    Number of Bulbs:
    1 Bulbs
    Bulb Dimmable:
    Yes
    Bulb Hours:
    50000
    Kelvin:
    2700, 3000, 3500, 4000, 5000
    Material:
    Aluminum
    Ship Carton Height:
    2.5
    Ship Carton Length:
    8.5
    Ship Carton Width:
    7.25
    Ship Weight:
    1.2
    Warranty:
    5 Years Limited
    Weight:
    1.1
    Air-Tight (ASTM E283--4):
    Yes
    Beam Angle:
    110
    Bulb CRI:
    80
    Country of Origin:
    China
    Delivered Lumens:
    1230
    Dimmer Type:
    Triac / ELV
    Energy Star:
    No
    IC certification:
    Yes
    Indoor:
    Yes
    IP Rating:
    IP44
    Lens Material:
    Plastic
    Location Rating:
    Wet Rated
    Max Wattage:
    14 W
    Maximum Working Temperature:
    40°C
    Minimum Working Temperature:
    -20°C
    Outdoor:
    Yes
    Prop 65:
    Yes
    Safety Rating:
    ETL Approved
    Shipping Master Height:
    15.25
    Shipping Master Length:
    17.5
    Shipping Master Quantity:
    20
    Shipping Master Weight:
    24
    Shipping Master Width:
    14
    Title 24:
    Yes
    Wiring:
    Hardwired
