Item Sales Info
Part Number: CYL06-CC-V-BK / Vendor ID Number: 1192731 / Custom:
Canadian

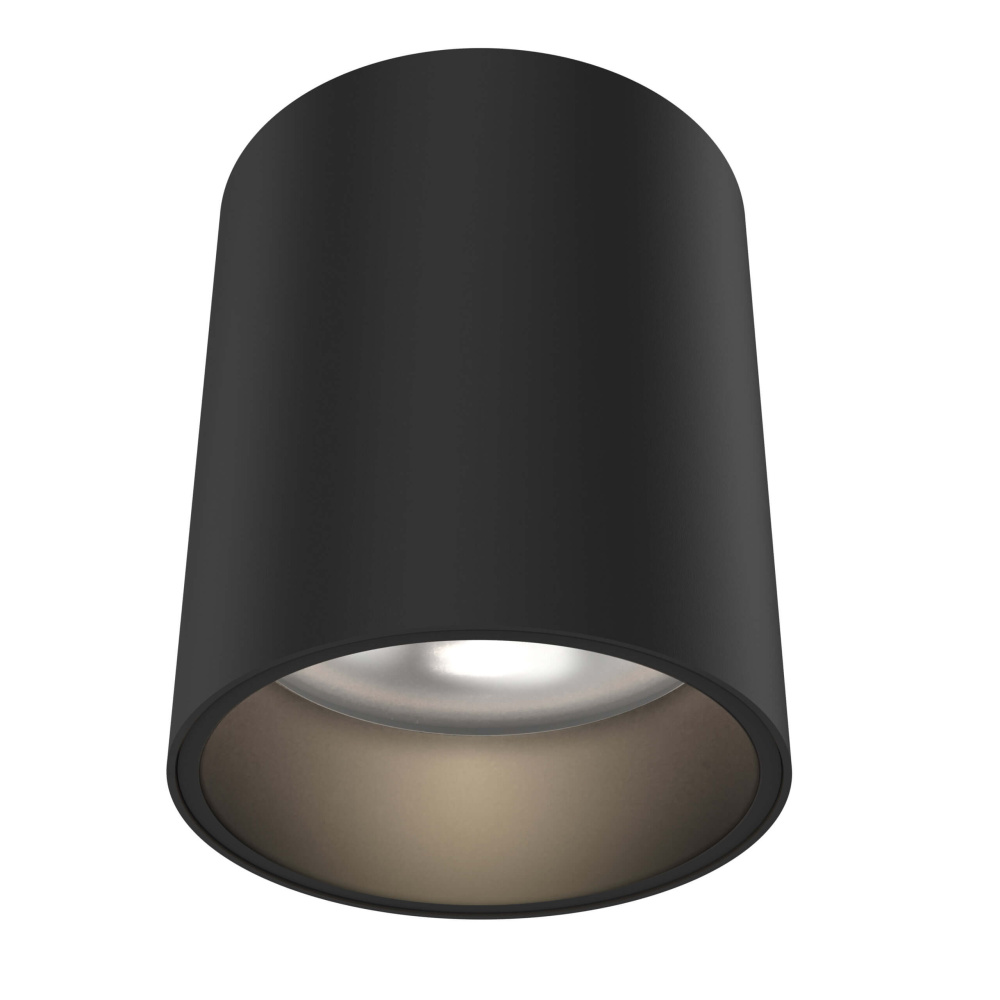

6in cylinder flushmount universal 120V-347V, 0-10V dimming

6in cylinder flushmount universal 120V-347V, 0-10V dimming

187
02
Pack Of: 1
  • Manufacturer availability unavailable.
    •

    Add To Cart
    Add To Estimate
    Add To Wishlist
    Compare Item
    Qty
    Product Specification

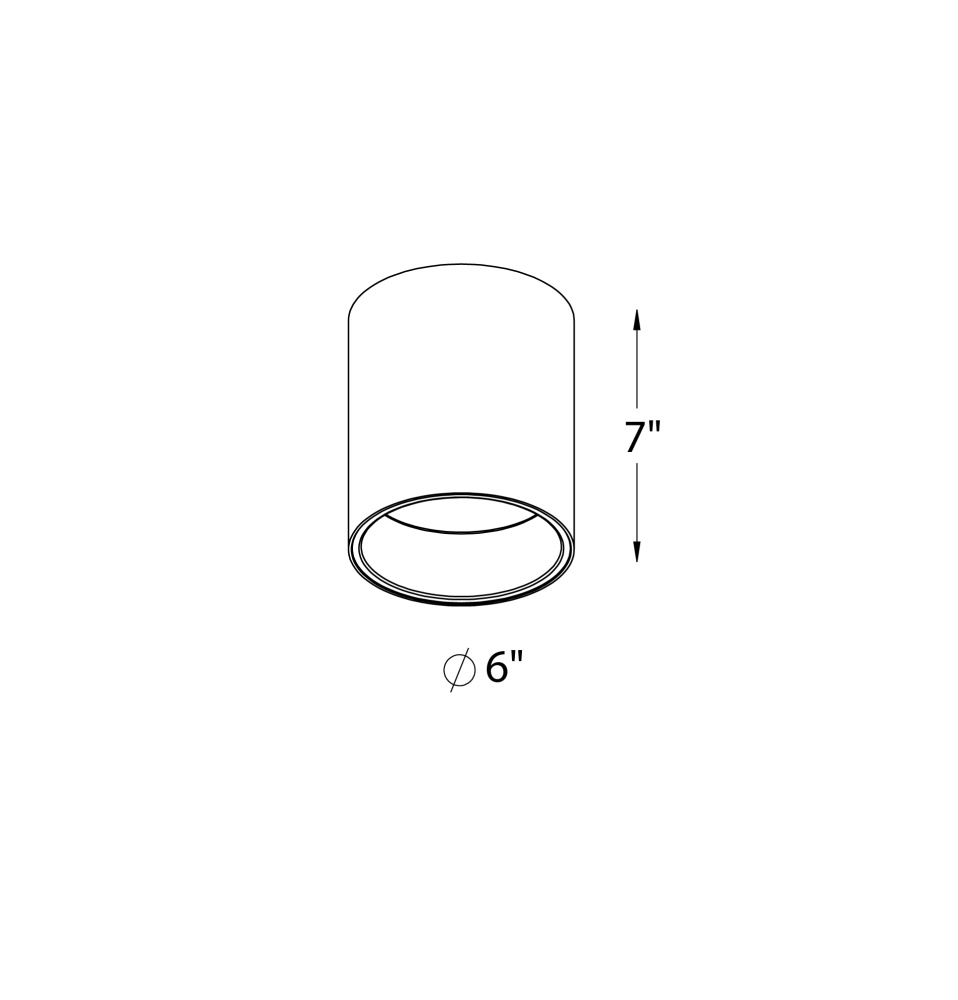

    Dimensions
    Height: 7.00"
    Width: 6.00"
    Product Overview
    The Focus modern LED cylinder flush mounts are available in two sizes—5-inch and 6-inch—with the larger size featuring a multi-voltage driver for added versatility.
    Specific Products:
    Additional Information
    3 optical options included : clear, frosted and honeycomb
    35° beam angle
    Aluminum construction
    Every fixture includes a junction box with an integrated driver
    Switch-selectable CCT
    Info & Guides
    Click Here to View Instruction Sheet
    File
    Technical Details
    Details
    Category:
    Flush Mounts
    Subcategory:
    Drum Shade Flush Mounts
    Finish:
    Black /vendors/vendorImages black.jpg
    Option:
    Title 24 /vendors/vendorImages ca title 24 compliant.jpg
    Outdoor
    Wet Rated
    Category:
    Ceiling
    Subcategory:
    Flushmount
    Finish:
    Black /vendors/vendorImages black.jpg
    Option:
    Outdoor
    Title 24 /vendors/vendorImages ca title 24 compliant.jpg
    Family:
    Focus
    Voltage:
    120/277/347 V
    Number of Bulbs:
    1 Bulbs
    Bulb Hours:
    50000
    Kelvin:
    2700, 3000, 3500, 4000, 5000
    Material:
    Steel
    Ship Carton Height:
    9.25
    Ship Carton Length:
    7.9
    Ship Carton Width:
    7.9
    Ship Weight:
    3.4
    Warranty:
    5 Years Limited
    Weight:
    2.75
    Beam Angle:
    45
    Bulb CRI:
    90
    Country of Origin:
    China
    Delivered Lumens:
    1551
    Dimmer Type:
    0-10 V
    Indoor:
    Yes
    IP Rating:
    IP54
    Lens Material:
    PC
    Location Rating:
    Wet Rated
    Max Wattage:
    26 W
    Maximum Working Temperature:
    40°C
    Minimum Working Temperature:
    -20°C
    Outdoor:
    Yes
    Safety Rating:
    ETL Approved
    Shipping Master Height:
    10
    Shipping Master Length:
    16.5
    Shipping Master Quantity:
    4
    Shipping Master Weight:
    15
    Shipping Master Width:
    16.5
    Title 24:
    Yes
    Wiring:
    Hardwired
