Item Sales Info
Part Number: PIL08-CC-UNV-WH / Vendor ID Number: 1192731 / Custom:
Canadian

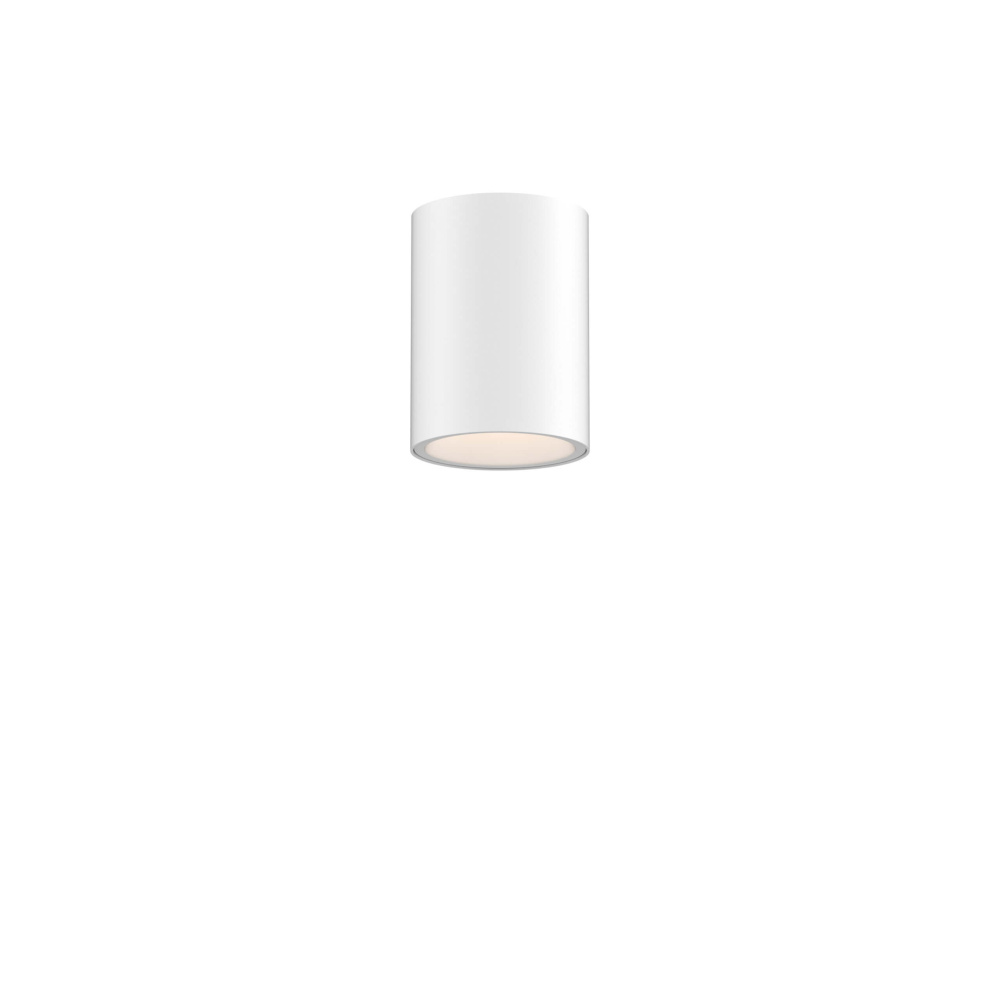

8in cylinder flushmount, universal driver, 5CCT - White

8in cylinder flushmount, universal driver, 5CCT - White

500
00
Pack Of: 1
  • Manufacturer availability unavailable.
    •

    Add To Cart
    Add To Estimate
    Add To Wishlist
    Compare Item
    Qty
    Product Specification
    Dimensions
    Height: 8.00"
    Width: 6.00"
    Product Overview

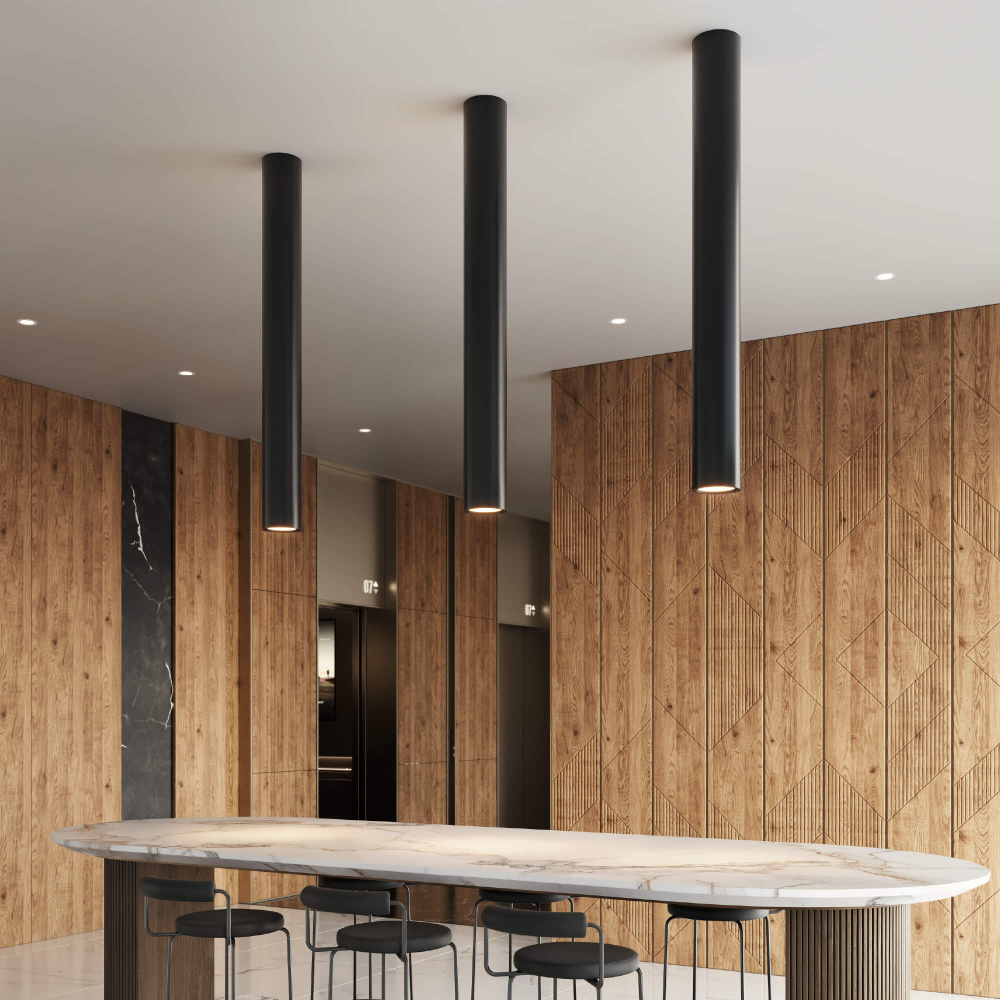

    Pillar combines architectural form with creative flexibility. Its modular system invites personalization, extension tubes for varied proportions, a glass globe for a refined glow, and felt disks in six curated tones that soften both light and sound. Designed for individuality and balance, Pillar allows you to define how bold or subtle it becomes.
    Finish:
    Additional Information
    36° beam angle
    Canopy mounts on a 4″ octagon junction box
    Replaceable driver
    Switch-selectable CCT
    Universal voltage: 120V, 277V, or 347V input with TRIAC, ELV, and 0–10V dimming
    Info & Guides
    Click Here to View Instruction Manual
    Click Here to View Catalog Page
    Click Here to View Spec Sheet
    Technical Details
    Details
    Category:
    Flush Mounts
    Subcategory:
    Other Flush Mounts
    Category:
    Ceiling
    Subcategory:
    Flushmount
    Finish:
    White /vendors/vendorImages white.jpg
    Option:
    ADA Compliant
    Outdoor
    Prop 65 /vendors/vendorImages prop65.png
    Title 24 /vendors/vendorImages ca title 24 compliant.jpg
    Family:
    Pillar
    Voltage:
    120 V/277 V/347 V
    Number of Bulbs:
    1 Bulbs
    Bulb Dimmable:
    Yes
    Bulb Hours:
    50000
    Kelvin:
    2200, 2700, 3000, 3500, 4000
    Material:
    Aluminum
    Ship Carton Height:
    12.2
    Ship Carton Length:
    9.1
    Ship Carton Width:
    8.6
    Ship Weight:
    6.25
    Warranty:
    5 Years Limited
    Weight:
    5.25
    ADA Compliant:
    Yes
    Beam Angle:
    45
    Bulb CRI:
    90
    Country of Origin:
    China
    Delivered Lumens:
    2500
    Dimmer Type:
    Triac/ELV/0-10V
    Energy Star:
    No
    IC certification:
    Yes
    Indoor:
    Yes
    IP Rating:
    IP54
    JA8:
    Yes
    Lens Material:
    PC
    Location Rating:
    Wet Rated
    Max Wattage:
    34 W
    Maximum Torking Temperature:
    40°C
    Minimum Working Temperature:
    -20°C
    Outdoor:
    Yes
    Prop 65:
    Yes
    Safety Rating:
    ETL Rated
    Shipping Master Height:
    19.3
    Shipping Master Length:
    18.3
    Shipping Master Quantity:
    4
    Shipping Master Weight:
    26.3
    Shipping Master Width:
    12.6
    Title 24:
    Yes
    Wiring:
    Hardwired
