Part Number: HPD4-CC-V-WH / Vendor ID Number: 1192731 / Custom:
Canadian

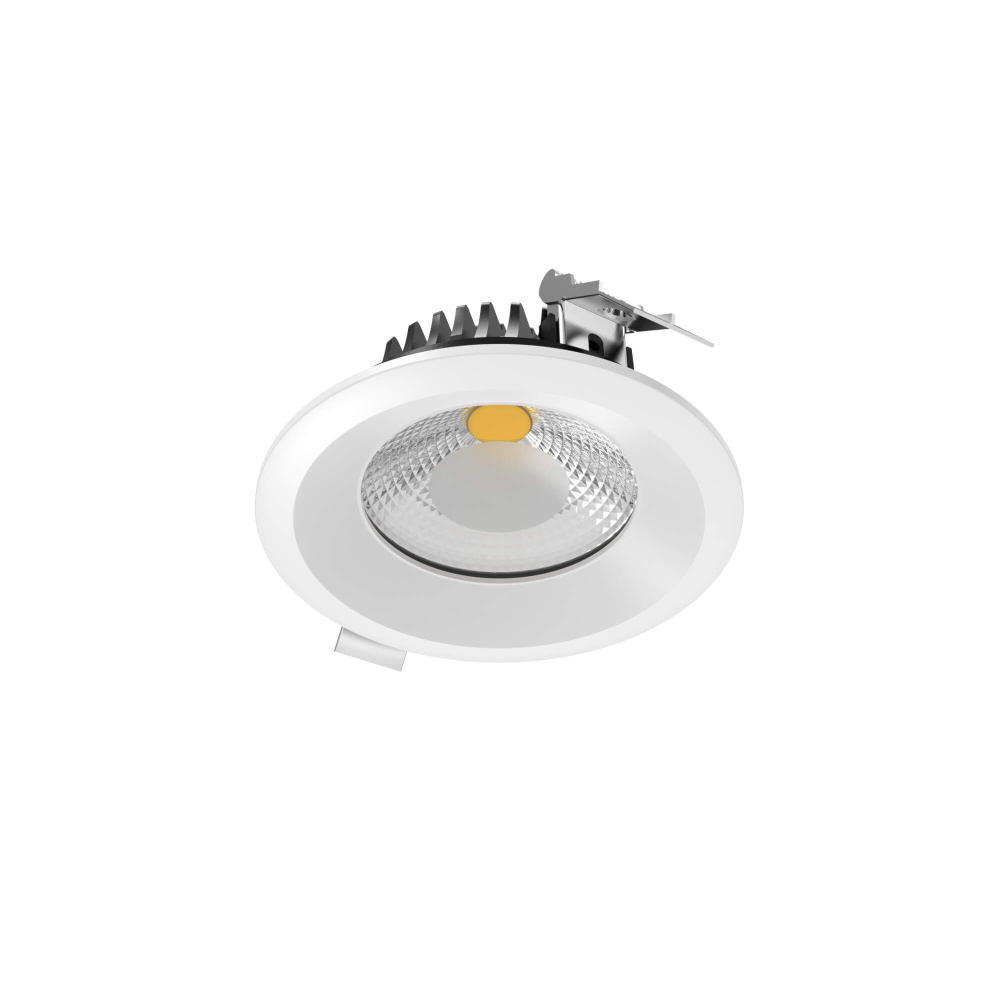

High-Powered Commercial Downlight - 120V/277V/347V 0-10V dimming

High-Powered Commercial Downlight - 120V/277V/347V 0-10V dimming

154
12
Pack Of: 1
  • Manufacturer availability unavailable.

  • Qty
    Product Specification

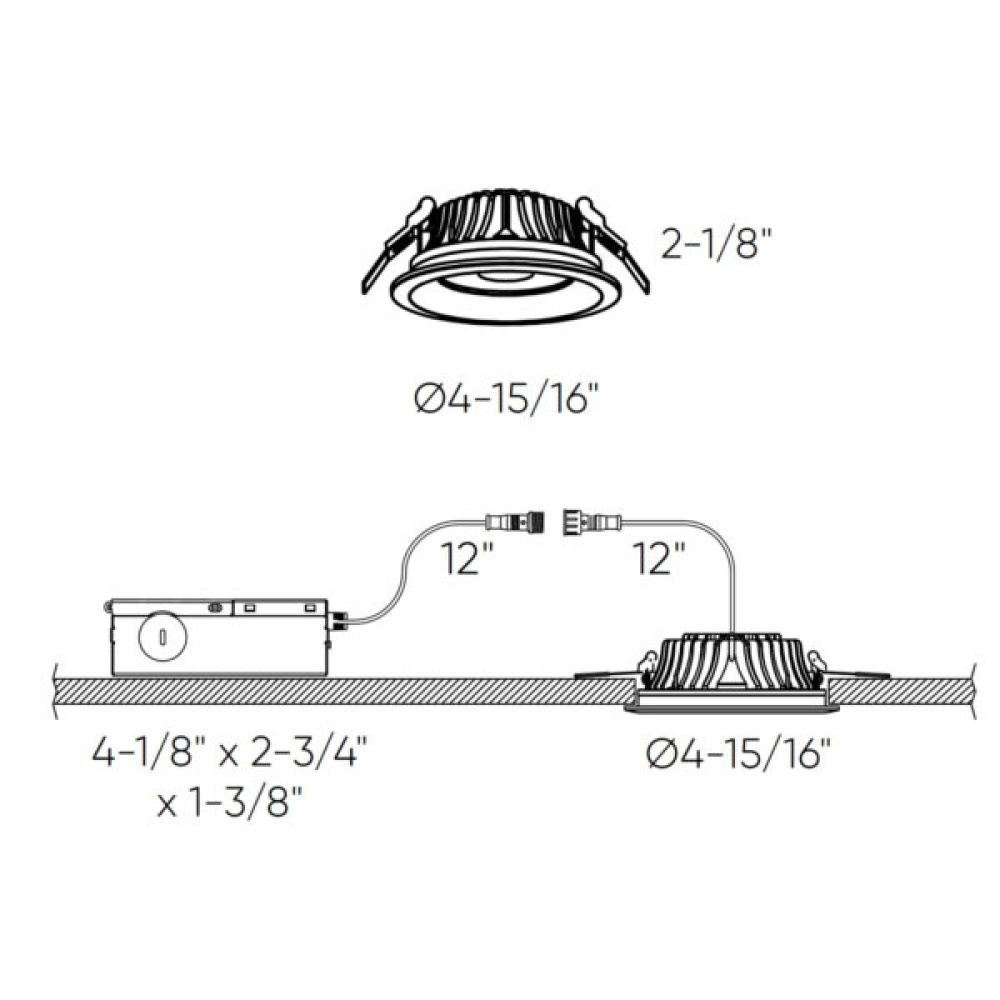

    Dimensions
    Height: 2.13"
    Width: 4.94"
    Product Overview
    Dals’ new high-powered recessed downlight is a go-to for your commercial projects. With its five color temperatures to choose from, a cast aluminum housing, high lumen output, and indoor/outdoor rating, this can be installed just about anywhere. From clinics to schools and hotels to boutiques, this is the only slim recessed fixture you will need.
    Additional Information
    50,000 hours service life
    Compatible with TRIAC and ELV dimmers
    Every fixture includes a junction box with an integrated driver
    Suitable for wet locations
    Switch-selectable CCT: 2700 K/3000 K/3500 K/4000 K/5000 K
    Info & Guides
    Technical Details
    Details
    Category:
    Recessed Ltg.
    Subcategory:
    Other Recessed Ltg.
    Finish:
    White /vendors/vendorImages white.jpg
    Style:
    Contemporary
    Option:
    Energy Star /vendors/vendorImages energy star.jpg
    Title 24 /vendors/vendorImages ca title 24 compliant.jpg
    Outdoor
    Wet Rated
    Prop 65 /vendors/vendorImages prop65.png
    Voltage:
    100-120
    Lumens:
    450-800
    Kelvin:
    2501-3000
    Location Rating:
    Wet Rated
    Wattage:
    20w
    Category:
    Recessed
    Subcategory:
    Regressed
    Finish:
    White /vendors/vendorImages white.jpg
    Option:
    Energy Star /vendors/vendorImages energy star.jpg
    Outdoor
    Prop 65 /vendors/vendorImages prop65.png
    Title 24 /vendors/vendorImages ca title 24 compliant.jpg
    Family:
    Hilux
    Voltage:
    120/277/347 V
    Number of Bulbs:
    1 Bulbs
    Bulb Dimmable:
    Yes
    Bulb Hours:
    50000
    Kelvin:
    2700, 3000, 3500, 4000, 5000
    Material:
    Aluminum
    Ship Carton Height:
    3.5
    Ship Carton Length:
    5.75
    Ship Carton Width:
    5
    Ship Weight:
    2.14
    Warranty:
    5 Years Limited
    Air-Tight (ASTM E283--4):
    Yes
    Beam Angle:
    93
    Bulb CRI:
    90
    Country of Origin:
    China
    Delivered Lumens:
    1415
    Dimmer Type:
    0-10 V Dimming
    Energy Star:
    Yes
    IC certification:
    Yes
    Indoor:
    Yes
    Lens Material:
    Glass
    Location Rating:
    Wet Rated
    Max Wattage:
    20 / 22 / 24 W
    Maximum Working Temperature:
    40°C
    Minimum Working Temperature:
    -20°C
    Outdoor:
    Yes
    Prop 65:
    Yes
    Safety Rating:
    ETL Approved
    Shipping Master Height:
    18
    Shipping Master Length:
    21
    Shipping Master Quantity:
    10
    Shipping Master Weight:
    22
    Shipping Master Width:
    10
    Title 24:
    Yes
    Wiring:
    Hardwired
