Part Number: FPD8159BNWBL / Vendor ID Number: 778 / Custom:

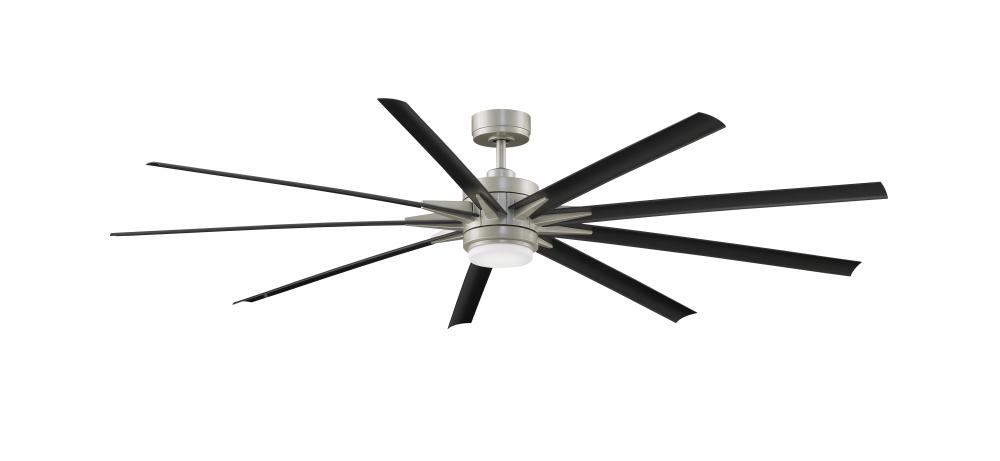

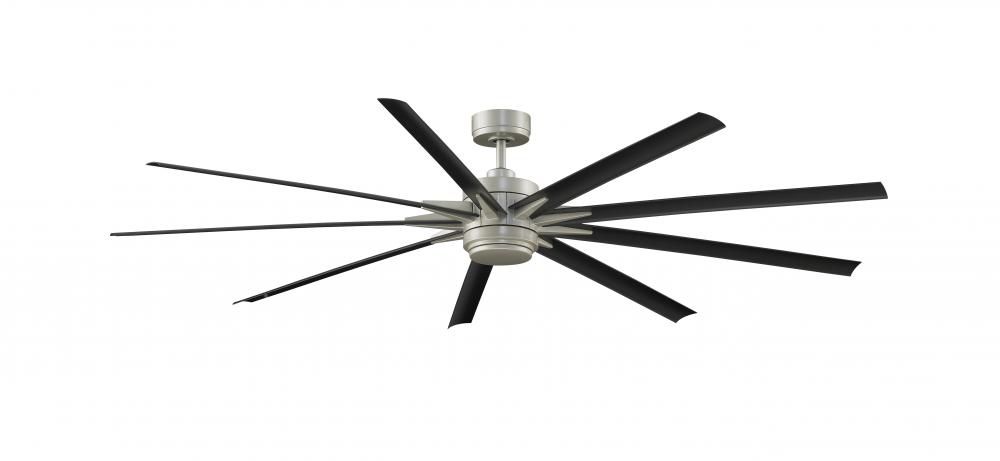

Odyn - 84 inch - BNW with BL Blades and LED LK

Odyn - 84 inch - BNW with BL Blades and LED LK

Call For Price
  • Manufacturer has 42 items available.
  • More Items available 03/19/2026.

  • Qty
    Product Specification
    Dimensions
    Height: 22.63"
    Width: 84.00"
    Product Overview
    The Odyn by Fanimation, knows its the boss whenever it enters a room. Its magnificence commands immediate attention and will surely dazzle onlookers. The Odyn's DC motor allows this fan to consume up to 70% less energy. The Odyn can accommodate up to an 84 inch blade sweep and operates on six forward and reverse speeds. The fan includes a remote control, integrated LED with CCT Select Temperature settings, and a cap for use without the light. Blades sold separately. *Wet Rated for indoor or outdoor use *Can be controlled using the Fanimation Bluetooth fanSync app *Reversible airflow for multi-season use
    The Odyn, by Fanimation, knows its the boss whenever it enters a room. Its magnificence commands immediate attention and will surely dazzle onlookers. The Odyn's DC motor allows this fan to consume up to 70% less energy. The Odyn can accommodate up to an 84 inch blade sweep and operates on six forward and reverse speeds. The fan includes a remote control and a cap for use without light. Blades sold separately. *Wet Rated for indoor or outdoor use *Can be controlled using the Fanimation Bluetooth fanSync app *Reversible airflow for multi-season use
    Blade Finish:
    Additional options that would change other selections
    Motor Finish Method Type:
    Additional options that would change other selections
    Additional Information
    CONTROL: Use your smart home device with our fanSync app, or use the included TR305 hand-held remote with two 3V CR2032 batteries.
    FINISH: Brushed Nickel ceiling fan from the Odyn Collection features 9 Black blades
    INSTALLATION: Mounts to flat or minimally sloped ceilings with the included 1-in diameter x 12-in length downrod.
    LIGHTING: Includes integrated 18-watt dimmable LED light kit with Correlated Color Temperature (CCT) Select technology, providing a selection of light colors ranging from warm white, bright light or daylight with opal frosted glass shade
    LOCATION: Wet Rated for indoor and outdoor use in wet locations, making it ideal for any indoor room or spaces like gazebos, patios, pergolas, or porches
    Optional downrods are available in lengths up to 72 inches to adjust the fans height between 7-ft to 9-ft from the floor, ensuring maximum airflow
    POWER: The 16-speed, quiet, and energy efficient DC Motor provides airflow up to 11,363 CFM
    Push buttons control 16 variable fan speeds, light levels, CCT Select, timer, powering on/off, and fresh air, reverse, home away, safe exit modes
    SAVINGS: Features a reversible motor, allowing you to switch the direction of your fans rotation and create energy savings
    TECHNOLOGY: Correlated Color Temperature (CCT) Select Technology, provides a selection of light colors ranging from warm white, bright light or daylight and WiFi fanSync, which provides fan control with a smart device or voice assistant
    WARRANTY: Limited lifetime
    Info & Guides
    Technical Details
    Details
    Category:
    Exterior
    Fans
    Subcategory:
    Exterior Fans
    Outdoor Fans
    Finish:
    Nickel /vendors/vendorImages nickel.jpg
    Style:
    Traditional
    Option:
    Energy Efficient
    Energy Star /vendors/vendorImages energy star.jpg
    Outdoor
    Wet Rated
    LED
    Prop 65 /vendors/vendorImages prop65.png
    Voltage:
    10-99
    Glass Finish or Style:
    Frosted
    Opal
    Lumens:
    1101-1600
    Number of Blades:
    8 Plus Blades
    Subfinish:
    Brushed Nickel
    Location Rating:
    Wet Rated
    Wattage:
    18w
    Finish:
    Brushed Nickel
    Option:
    Energy Efficient
    Energy Star /vendors/vendorImages energy star.jpg
    LED
    Outdoor
    Prop 65 /vendors/vendorImages prop65.png
    Family:
    Odyn 84
    Glass:
    Opal Frosted
    Voltage:
    120 V
    Number of Bulbs:
    1 Bulbs
    Air Flow CFM:
    11363
    Air Flow Efficiency:
    328
    Blade Finish:
    Black
    Blade Pitch:
    12
    Blade Span:
    84
    Bulb Type:
    LED Module
    Canopy:
    6.46 Dia x 2.58 H
    Harmonized Codes:
    8414.51.3000
    Kelvin:
    3000/4000/5000
    Light Kit Included:
    Yes
    Lumens / Light Output:
    1600
    Motor Size:
    135L
    Motor Type:
    DC
    Ship Carton Height:
    12.91
    Ship Carton Length:
    39.96
    Ship Carton Width:
    10.43
    Ship Weight:
    37.49
    Sold By:
    Each
    Warranty:
    Limited Lifetime
    Weight:
    33.74
    Airflow Efficiency Low:
    1179
    Airflow Efficiency Medium:
    648
    Avg Airflow Efficiency:
    339
    Avg CFM Energy:
    7949
    Avg Energy Use:
    23
    Avg Estimated Yearly Energy Cost:
    7
    Avg Estimated Yearly Energy Cost on HIGH:
    10
    Blade Finish Method:
    Painted
    Blade Material:
    Composite
    Blade Reversible:
    No
    Blade Sweep:
    84
    Bulb Base:
    Connector Pin
    Bulb CRI:
    90
    Cap Included:
    Yes
    Carton Cubic Feet:
    3.11
    Case Height:
    12.91
    Case Length:
    39.96
    Case Quantity:
    1
    Case Weight Pounds:
    37.49
    Case Width:
    10.43
    CEC Uploaded:
    Yes
    Ceiling To Blade Edge:
    18.83
    Ceiling To Bottom (No Light Kit):
    22.32
    Ceiling To Bottom (With Light Kit):
    22.63
    CFM Low:
    4694
    CFM Medium:
    8272
    Country of Origin:
    China
    Current Draw High:
    0.49
    Current Draw Low:
    0.07
    Current Draw Medium:
    0.2
    DOE Classification:
    LSSD
    DOE-FTC Uploaded:
    Yes
    Downrod Length:
    12
    Energy Efficient:
    Yes
    Energy Star:
    Yes
    Exempt from DOE Procedure:
    No
    Housing Diameter:
    8.27
    Included Control:
    TR305
    Included Control Type:
    Handheld
    Indoor:
    Yes
    Leadwire:
    80
    LED:
    Yes
    Location Rating:
    Wet Rated
    Max Ceiling Slope:
    27
    Max Wattage:
    18
    Motor Finish Method Type:
    Plated
    Motor Reversible:
    Yes
    Number of Blades:
    9
    Number Of Speeds:
    16
    Outdoor:
    Yes
    Prop 65:
    Yes
    Prop 65 Description:
    This product can expose you to chemicals including Lead which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    Regulated Product:
    Yes
    Reverse Switch Location:
    Control
    RPM High:
    70
    RPM Low:
    30
    RPM Medium:
    51
    Safety Rating:
    UL Approved, cUL Approved
    Voltage Cycles:
    60 Hz
    Watts High:
    35
    Watts Low:
    4
    Watts Medium:
    13
