Item Sales Info

Part Number: MAD8152BLW / Vendor ID Number: 778 / Custom:

No Image
Available

Odyn Custom Motor - BLW with LED LK

Call For Price

Manufacturer has 397 items available.

More Items available 03/19/2026.

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Qty

Product Specification

Dimensions

Height: 22.63"

Width: 56.00"

Product Overview

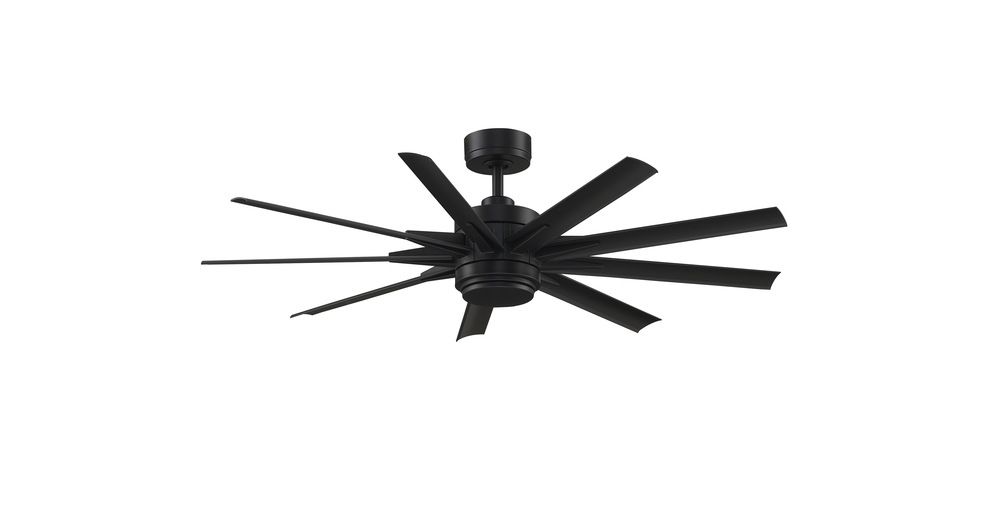

The Odyn, by Fanimation, knows its the boss whenever it enters a room. Its magnificence commands immediate attention and will surely dazzle onlookers. The Odyn's DC motor allows this fan to consume up to 70% less energy. The Odyn can accommodate up to an 84 inch blade sweep and operates on six forward and reverse speeds. The fan includes a remote control, integrated LED with CCT Select Temperature settings, and a cap for use without the light. Blades sold separately. This ceiling fan is Wet Rated for indoor or outdoor use. It can be controlled using the Fanimation Wi-Fi fanSync application.

The Odyn, by Fanimation, knows its the boss whenever it enters a room. Its magnificence commands immediate attention and will surely dazzle onlookers. The Odyn's DC motor allows this fan to consume up to 70% less energy. The Odyn can accommodate up to an 84 inch blade sweep and operates on six forward and reverse speeds. The fan includes a remote control and a cap for use without light. Blades sold separately. *Wet Rated for indoor or outdoor use *Can be controlled using the Fanimation Bluetooth fanSync app *Reversible airflow for multi-season use

Finish:

Additional Information

CONTROL: Includes a Wi-Fi receiver and TR305 handheld remote with two 3V CR2032 batteries - Push buttons control 16 variable fan speeds.

FINISH: Black ceiling fan motor from the Odyn Custom collection with Black light kit - Set of nine Wet Rated blades available in multiple finishes (sold separately)

Infinite light levels, color temperature, fan/light timer, powering on/off, and fresh air, reverse, home away, safe exit modes

INSTALLATION: Mounts to flat or minimally sloped ceilings with the included 1-in diameter x 12-in length downrod - optional downrods are available in lengths up to 72 inches to adjust the fans height to 7ft - 9ft from the floor, ensuring maximum airflow

LIGHTING: Includes 18-Watt dimmable LED light kit with Correlated Color Temperature (CCT) Select technology and opal frosted glass

LOCATION: This ceiling fan is Wet Rated for use in indoor and outdoor spaces, making it ideal for any indoor room or spaces like gazebos, patios, pergolas, or porches

POWER: The 16-speed, quiet and energy efficient DC motor can provide airflow up to 9,193 CFM

SAVINGS: Features a reversible motor, allowing you to switch the direction of your fans rotation and create energy savings

TECHNOLOGY: Includes fanSync Wi-Fi connectivity, allowing the fan to pair with most smart home devices

WARRANTY: Limited lifetime

Info & Guides

Click Here to View Specsheets

Technical Details

Details

Category:

Fans

Subcategory:

Fan Motor Without Blades

Finish:

Black /vendors/vendorImages black.jpg

Style:

Traditional

Option:

Energy Efficient

Energy Star /vendors/vendorImages energy star.jpg

Outdoor

Wet Rated

LED

Prop 65 /vendors/vendorImages prop65.png

Voltage:

10-99

Glass Finish or Style:

Frosted

Opal

Lumens:

1101-1600

Number of Blades:

8 Plus Blades

Location Rating:

Wet Rated

Wattage:

18w

Finish:

Black /vendors/vendorImages black.jpg

Option:

Energy Efficient

Energy Star /vendors/vendorImages energy star.jpg

LED

Outdoor

Prop 65 /vendors/vendorImages prop65.png

Family:

Odyn Custom

Glass:

Opal Frosted

Voltage:

120 V

Number of Bulbs:

1 Bulbs

Air Flow CFM:

9193

Air Flow Efficiency:

321

Blade Pitch:

Bulb Type:

LED Module

Canopy:

6.46 Dia x 2.58 H

Harmonized Codes:

8414.51.3000

Kelvin:

3000/4000/5000

Light Kit Included:

Yes

Motor Size:

135

Motor Type:

Ship Carton Height:

10.94

Ship Carton Length:

27.36

Ship Carton Width:

14.76

Ship Weight:

28.44

Sold By:

Each

Warranty:

Limited Lifetime

Weight:

25.07

Airflow Efficiency Low:

939

Airflow Efficiency Medium:

634

Avg Airflow Efficiency:

326

Avg CFM Energy:

6471

Avg Energy Use:

Avg Estimated Yearly Energy Cost:

Avg Estimated Yearly Energy Cost on HIGH:

Blade Reversible:

Bulb Base:

Connector Pin

Bulb CRI:

Cap Included:

Yes

Carton Cubic Feet:

2.56

Case Height:

10.94

Case Length:

27.36

Case Quantity:

Case Weight Pounds:

28.44

Case Width:

14.76

CEC Uploaded:

Yes

Ceiling To Blade Edge:

18.83

Ceiling To Bottom (No Light Kit):

22.32

Ceiling To Bottom (With Light Kit):

22.63

CFM Low:

3090

CFM Medium:

6433

Country of Origin:

China

Current Draw High:

0.42

Current Draw Low:

0.06

Current Draw Medium:

0.17

DOE Classification:

LSSD

DOE-FTC Uploaded:

Yes

Downrod Length:

Energy Efficient:

Yes

Energy Star:

Yes

Exempt from DOE Procedure:

Housing Diameter:

8.27

Included Control:

TR305

Included Control Type:

Handheld

Indoor:

Yes

Leadwire:

LED:

Yes

Location Rating:

Wet Rated

Max Ceiling Slope:

Max Length:

Max Wattage:

Max Width:

Motor Finish Method Type:

Painted

Motor Reversible:

Yes

Number of Blades:

Number Of Speeds:

Outdoor:

Yes

Prop 65:

Yes

Prop 65 Description:

This product can expose you to chemicals including Lead which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Regulated Product:

Yes

Reverse Switch Location:

Control

RPM High:

RPM Low:

RPM Medium:

Safety Rating:

UL Approved, cUL Approved

Voltage Cycles:

60 Hz

Watts High:
