Part Number: MAD6721BS / Vendor ID Number: 778 / Custom:
No Image
Available

Spitfire DC Custom Motor - BS

Call For Price
  • Manufacturer has 725 items available.
  • More Items available 03/19/2026.
    •

    Add To Cart
    Add To Estimate
    Add To Wishlist
    Compare Item
    Qty
    Product Specification
    Dimensions
    Height: 19.69"
    Width: 64.00"
    Product Overview

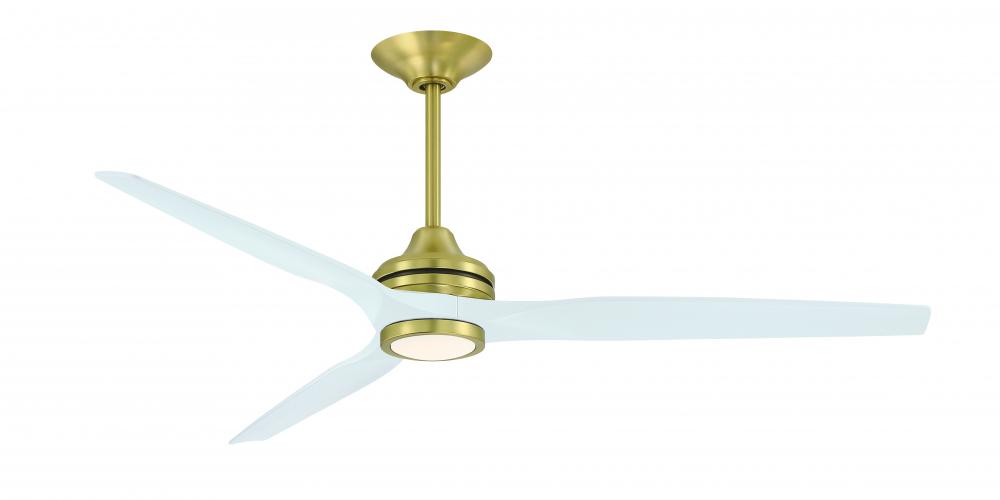

    The Spitfire DC Custom features an exquisite three bladed design with many rich finish offerings to choose from. The Spitfire DC Custom is available in a 64, 72, 84 and 96 inch blade sweep (sold separately), and an optional LED light kit that features the correlated color temperature (CCT) Select functionality (sold separately). Handheld remote included. This ceiling fan is Damp rated for indoor or outdoor use and can be controlled using the Fanimation Wi-Fi fanSync application.
    Finish:
    Motor Finish Method Type:
    Additional options that would change other selections
    Additional Information
    CONTROL: Includes a Wi-Fi receiver and TR305 handheld remote with two 3V CR2032 batteries - Push buttons control 16 variable fan speeds.
    FINISH: Brushed Satin Brass ceiling fan motor from the Spitfire DC collection - Set of three Damp Rated blades available in multiple finishes (sold separately)
    Infinite light levels, color temperature, fan/light timer, powering on/off, and fresh air, reverse, home away, safe exit modes
    INSTALLATION: Mounts to flat or minimally sloped ceilings with the included 1-in diameter x 12-in length downrod - optional downrods are available in lengths up to 72 inches to adjust the fans height to 7ft - 9ft from the floor, ensuring maximum airflow
    LIGHTING: 18-Watt dimmable LED light kit with Correlated Color Temperature (CCT) Select technology and opal frosted glass available for added versatility (light kit sold separately)
    LOCATION: This ceiling fan is Damp Rated for use in indoor and outdoor covered spaces exposed to moisture and humidity
    POWER: The 16-speed, quiet and energy efficient DC motor can provide airflow up to 12,900 CFM
    SAVINGS: Features a reversible motor, allowing you to switch the direction of your fans rotation and create energy savings
    TECHNOLOGY: Includes fanSync Wi-Fi connectivity, allowing the fan to pair with most smart home devices
    WARRANTY: Limited lifetime
    Info & Guides
    Click Here to View Specsheets
    Technical Details
    Details
    Category:
    Fans
    Subcategory:
    Ceiling Fans
    Finish:
    Black /vendors/vendorImages black.jpg
    Brass /vendors/vendorImages brass.jpg
    Style:
    Traditional
    Option:
    Energy Efficient
    Outdoor
    Damp Rated
    Prop 65 /vendors/vendorImages prop65.png
    Voltage:
    10-99
    Number of Blades:
    3 Blades
    Location Rating:
    Damp Rated
    Wattage:
    8w
    Finish:
    Brushed Satin Brass
    Option:
    Energy Efficient
    Outdoor
    Prop 65 /vendors/vendorImages prop65.png
    Family:
    Spitfire
    Voltage:
    120 V
    Air Flow CFM:
    12900
    Air Flow Efficiency:
    386
    Blade Pitch:
    14
    Canopy:
    8.76 Dia x 2.52 H
    Harmonized Codes:
    8414.51.3000
    Light Kit Included:
    No
    Motor Size:
    153 x 25
    Motor Type:
    DC
    Ship Carton Height:
    10.94
    Ship Carton Length:
    14.37
    Ship Carton Width:
    10.43
    Ship Weight:
    16.65
    Sold By:
    Each
    Warranty:
    1 Year
    Weight:
    15.99
    Airflow Efficiency Low:
    1049
    Airflow Efficiency Medium:
    880
    Avg Airflow Efficiency:
    376
    Avg CFM Energy:
    7429
    Avg Energy Use:
    20
    Avg Estimated Yearly Energy Cost:
    6
    Avg Estimated Yearly Energy Cost on HIGH:
    9
    Cap Included:
    No
    Carton Cubic Feet:
    0.95
    Case Height:
    10.94
    Case Length:
    14.37
    Case Quantity:
    1
    Case Weight Pounds:
    18.19
    Case Width:
    10.43
    CEC Uploaded:
    Yes
    Ceiling To Blade Edge:
    19.69
    Ceiling To Bottom (No Light Kit):
    19.69
    Ceiling To Bottom (With Light Kit):
    21.35
    CFM Low:
    2958
    CFM Medium:
    7355
    Country of Origin:
    China
    Current Draw High:
    0.47
    Current Draw Low:
    0.06
    Current Draw Medium:
    0.14
    DOE Classification:
    LSSD
    DOE-FTC Uploaded:
    Yes
    Downrod Length:
    12, 6
    Energy Efficient:
    Yes
    Exempt from DOE Procedure:
    No
    Housing Diameter:
    8.07
    Included Control:
    TR305
    Included Control Type:
    Handheld
    Indoor:
    Yes
    Leadwire:
    80
    Location Rating:
    Damp Rated
    Max Ceiling Slope:
    27
    Max Length:
    96
    Max Width:
    96
    Motor Finish Method Type:
    Plated
    Motor Reversible:
    Yes
    Number of Blades:
    3
    Number Of Speeds:
    16
    Outdoor:
    Yes
    Prop 65:
    Yes
    Prop 65 Description:
    This product can expose you to chemicals including Lead which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    Regulated Product:
    Yes
    Reverse Switch Location:
    Control
    RPM High:
    112
    RPM Low:
    29
    RPM Medium:
    67
    Safety Rating:
    UL Approved, cUL Approved
    Voltage Cycles:
    60 Hz
    Watts High:
    33
    Watts Low:
    3
    Watts Medium:
    8
