Part Number: MA6721BGZ / Vendor ID Number: 778 / Custom:
Spitfire Motor - GZ

Spitfire Motor - GZ

Call For Price
  • Manufacturer has 234 items available.
  • More Items available 03/19/2026.
    •

    Add To Cart
    Add To Estimate
    Add To Wishlist
    Compare Item
    Qty
    Product Specification
    Dimensions
    Height: 12.00"
    Width: 48.00"
    Product Overview

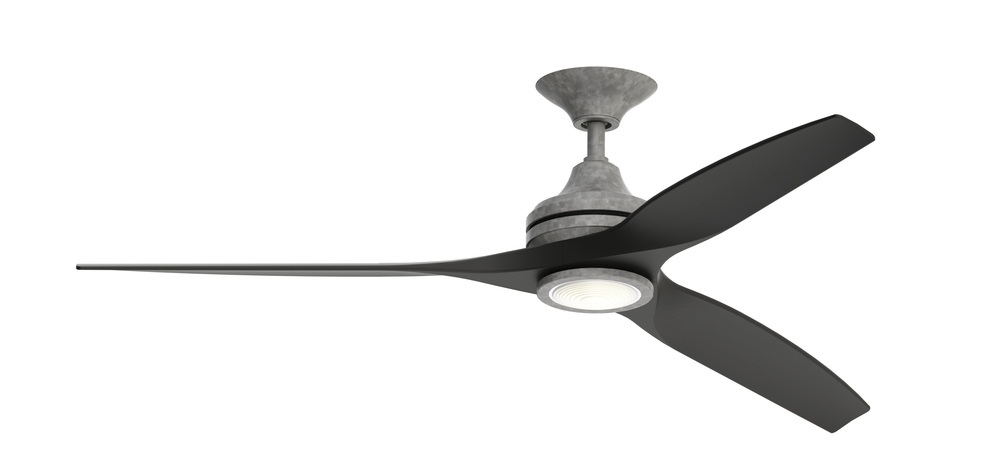

    The Spitfire Custom features an exquisite three bladed design with many rich finish offerings to choose from. It is available in a 48 or 60 inch blade sweep and features an optional LED light kit. Handheld remote included. This ceiling fan is Damp rated for indoor or outdoor use and is compatible with most smart home devices (required control sold separately)
    The Spitfire Custom features an exquisite three bladed design with many rich finish offerings to choose from. It is available in a 48 or 60 inch blade sweep and features an optional LED light kit. Handheld remote included. *Damp rated for indoor or outdoor use. *Compatible with most smart home devices (required control sold separately) *Reversible airflow for multi-season use
    Finish:
    Motor Finish Method Type:
    Additional options that would change other selections
    Additional Information
    CONTROL: Includes a TR500 hand-held remote with one 12V 23A battery - Push buttons control 3 fan speeds, infinite light levels, fan/light timer, and powering on/off
    FINISH: Galvanized ceiling fan motor from the Spitfire collection - Set of three Damp Rated blades available in multiple finishes (sold separately)
    INSTALLATION: Mounts to flat or minimally sloped ceilings with the included 1-in diameter x 4.5-in length downrod - optional downrods are available in lengths up to 72 inches to adjust the fans height to 7ft - 9ft from the floor, ensuring maximum airflow
    LIGHTING: 18-Watt dimmable LED light kit with opal frosted glass available for added versatility (light kit sold separately)
    LOCATION: This ceiling fan is Damp Rated for use in indoor and outdoor covered spaces exposed to moisture and humidity
    POWER: The 3-speed, energy efficient AC motor provides airflow up to 5,164 CFM
    SAVINGS: Features a reversible motor, allowing you to switch the direction of your fan?s rotation and create energy savings
    TECHNOLOGY: Compatible with Fanimation Wi-Fi fanSync and most smart home devices (required controls sold separately)
    WARRANTY: Limited lifetime
    Info & Guides
    Click Here to View Specsheets
    Technical Details
    Details
    Category:
    Fans
    Subcategory:
    Fan Motor Without Blades
    Finish:
    Gray /vendors/vendorImages gray.jpg
    Style:
    Traditional
    Option:
    Energy Efficient
    Outdoor
    Damp Rated
    Prop 65 /vendors/vendorImages prop65.png
    Voltage:
    10-99
    Number of Blades:
    3 Blades
    Location Rating:
    Damp Rated
    Finish:
    Galvanized
    Option:
    Energy Efficient
    Outdoor
    Prop 65 /vendors/vendorImages prop65.png
    Family:
    Spitfire
    Voltage:
    120 V
    Air Flow CFM:
    5164
    Air Flow Efficiency:
    72
    Blade Pitch:
    21
    Canopy:
    7.09 Dia x 2.2 H
    Harmonized Codes:
    8414.51.3000
    Light Kit Included:
    No
    Motor Size:
    188 x 25
    Motor Type:
    AC
    Ship Carton Height:
    10.94
    Ship Carton Length:
    14.37
    Ship Carton Width:
    10.43
    Ship Weight:
    17.85
    Sold By:
    Each
    Warranty:
    Limited Lifetime
    Weight:
    17.42
    Airflow Efficiency Low:
    132
    Airflow Efficiency Medium:
    101
    Avg Airflow Efficiency:
    80
    Avg CFM Energy:
    3527
    Avg Energy Use:
    44
    Avg Estimated Yearly Energy Cost:
    12
    Avg Estimated Yearly Energy Cost on HIGH:
    20
    Cap Included:
    No
    Carton Cubic Feet:
    0.95
    Case Height:
    10.94
    Case Length:
    14.37
    Case Quantity:
    1
    Case Weight Pounds:
    18.74
    Case Width:
    10.43
    CEC Uploaded:
    Yes
    Ceiling To Blade Edge:
    12
    Ceiling To Bottom (No Light Kit):
    12
    Ceiling To Bottom (With Light Kit):
    13.71
    CFM Low:
    1526
    CFM Medium:
    3280
    Country of Origin:
    China
    Current Draw High:
    0.6
    Current Draw Low:
    0.24
    Current Draw Medium:
    0.4
    DOE Classification:
    LSSD
    DOE-FTC Uploaded:
    Yes
    Downrod Length:
    4.5
    Energy Efficient:
    Yes
    Exempt from DOE Procedure:
    No
    Housing Diameter:
    8.07
    Included Control:
    TR500
    Included Control Type:
    Handheld
    Indoor:
    Yes
    Leadwire:
    80
    Location Rating:
    Damp Rated
    Max Ceiling Slope:
    19
    Max Length:
    60
    Max Width:
    60
    Motor Finish Method Type:
    Plated
    Motor Reversible:
    Yes
    Number of Blades:
    3
    Number Of Speeds:
    3
    Outdoor:
    Yes
    Prop 65:
    Yes
    Prop 65 Description:
    This product can expose you to chemicals including Lead which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    Regulated Product:
    Yes
    Reverse Switch Location:
    Motor Housing
    RPM High:
    198
    RPM Low:
    66
    RPM Medium:
    124
    Safety Rating:
    UL Approved, cUL Approved
    Voltage Cycles:
    60 Hz
    Watts High:
    72
    Watts Low:
    12
    Watts Medium:
    32
