Part Number: MAD8514BLM / Vendor ID Number: 778 / Custom:

TriAire Custom Marine - Motor - BLM

Call For Price

Manufacturer has 672 items available.

More Items available 03/19/2026.

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Qty

Product Specification

Dimensions

Height: 12.42"

Width: 44.00"

Product Overview

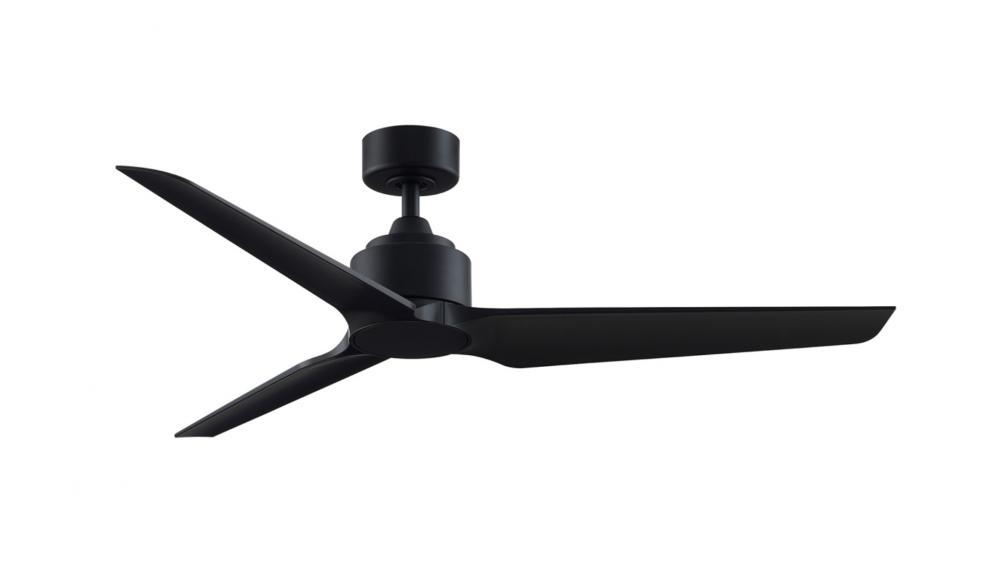

TriAire Custom by Fanimation fits any style in any location. This TriAire Custom ceiling fan motor features Marine grade finishes in Black or Matte White, that can be used in any indoor or outdoor location in the home. TriAire Custom Marine has a 31 speed DC motor and TR305 handheld remote included. Can be used in any dry, damp or wet location. Downrod, sloped or flush mount capability. Can be controlled using the Fanimation Bluetooth fanSync app. Reversible airflow for multi-season use. Eight different blade sweeps in multiple finishes and an LED CCT Select Light Kit are available (sold separately).

Finish:

Location Rating:

Additional options that would change other selections

Motor Finish Method Type:

Additional options that would change other selections

Specific Products:

Additional Information

CONTROL: Includes a Wi-Fi receiver and TR305 handheld remote with two 3V CR2032 batteries - Push buttons control 16 variable fan speeds.

FINISH: Black ceiling fan motor from the TriAire Custom Marine collection - Set of three Wet Rated blades available in multiple finishes (sold separately)

Infinite light levels, color temperature, fan/light timer, powering on/off, and fresh air, reverse, home away, safe exit modes

INSTALLATION: Mounts to flat or minimally sloped ceilings with the included 1-in diameter x 4.5-in length downrod - optional downrods are available in lengths up to 72 inches to adjust the fans height to 7ft - 9ft from the floor, ensuring maximum airflow

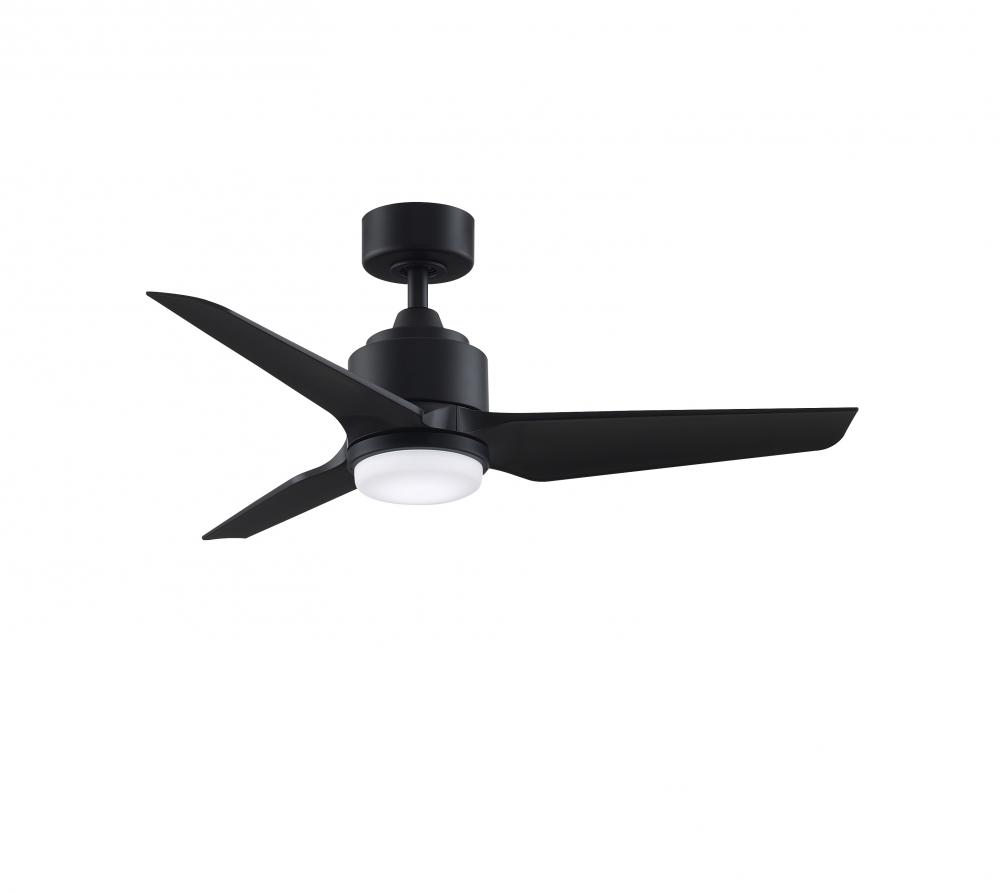

LIGHTING: 18-Watt dimmable LED light kit with Correlated Color Temperature (CCT) Select technology and opal frosted glass available for added versatility (light kit sold separately)

LOCATION: This ceiling fan is Wet Rated for use in indoor and outdoor spaces, making it ideal for any indoor room or spaces like gazebos, patios, pergolas, or porches

POWER: The 16-speed, quiet and energy efficient DC motor can provide airflow up to 6,765 CFM

SAVINGS: Features a reversible motor, allowing you to switch the direction of your fan?s rotation and create energy savings

TECHNOLOGY: Includes fanSync Wi-Fi connectivity, allowing the fan to pair with most smart home devices

WARRANTY: Limited lifetime

Info & Guides

Click Here to View Specsheets

Technical Details

Details

Category:

Fans

Subcategory:

Ceiling Fans with Light

Finish:

Black /vendors/vendorImages black.jpg

Option:

Energy Efficient

Outdoor

Wet Rated

Prop 65 /vendors/vendorImages prop65.png

Voltage:

10-99

Number of Blades:

3 Blades

Wattage:

Finish:

Black /vendors/vendorImages black.jpg

Option:

Energy Efficient

Outdoor

Prop 65 /vendors/vendorImages prop65.png

Family:

TriAire Custom

Voltage:

120 V

Air Flow CFM:

6765

Air Flow Efficiency:

230

Blade Pitch:

Canopy:

5.75 Dia x 2.57 H

Harmonized Codes:

8414.51.3000

Light Kit Included:

Motor Size:

158 x 22

Motor Type:

Ship Carton Height:

8.35

Ship Carton Length:

15.94

Ship Carton Width:

8.86

Ship Weight:

12.88

Sold By:

Each

Warranty:

Limited Lifetime

Weight:

11.73

Airflow Efficiency Low:

357

Airflow Efficiency Medium:

503

Avg Airflow Efficiency:

247

Avg CFM Energy:

4860

Avg Energy Use:

Avg Estimated Yearly Energy Cost:

Avg Estimated Yearly Energy Cost on HIGH:

Cap Included:

Yes

Carton Cubic Feet:

0.68

Case Height:

8.35

Case Length:

15.94

Case Quantity:

Case Weight Pounds:

12.88

Case Width:

8.86

CEC Uploaded:

Yes

Ceiling To Blade Edge:

12.92

Ceiling To Bottom (No Light Kit):

12.42

Ceiling To Bottom (With Light Kit):

14.62

CFM Low:

821

CFM Medium:

4222

Country of Origin:

China

Current Draw High:

0.42

Current Draw Low:

0.04

Current Draw Medium:

0.13

DOE Classification:

LSSD

DOE-FTC Uploaded:

Yes

Downrod Length:

4.5

Energy Efficient:

Yes

Exempt from DOE Procedure:

Housing Diameter:

7.09

Included Control:

TR305

Included Control Type:

Handheld

Indoor:

Yes

Leadwire:

Location Rating:

Wet Rated

Max Ceiling Slope:

Max Length:

Max Width:

Motor Finish Method Type:

Painted

Motor Reversible:

Yes

Number of Blades:

Number Of Speeds:

Outdoor:

Yes

Prop 65:

Yes

Prop 65 Description:

This product can expose you to chemicals including Lead which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Regulated Product:

Yes

Reverse Switch Location:

Control

RPM High:

161

RPM Low:

RPM Medium:

Safety Rating:

UL Approved, cUL Approved

Voltage Cycles:

60 Hz
