Part Number: MAD8515BS / Vendor ID Number: 778 / Custom:
TriAire Custom Motor - BS

TriAire Custom Motor - BS

Call For Price
  • Manufacturer has 383 items available.
  • More Items available 03/20/2026.

  • Qty
    Product Specification
    Dimensions
    Height: 15.92"
    Width: 64.00"
    Product Overview

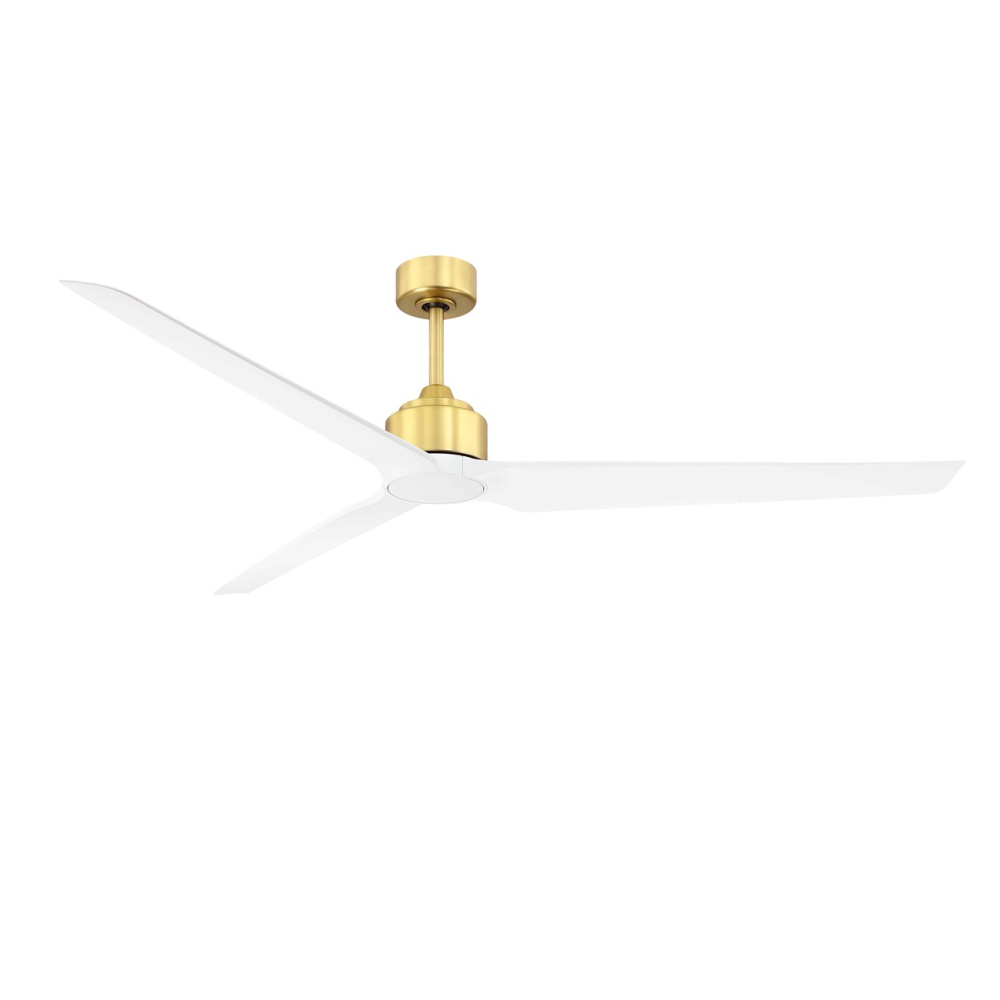

    The TriAire Custom by Fanimation fits any style and location. With eight different blade sweeps in multiple finishes, you can create the TriAire Custom that fits your space. This wet rated ceiling fan has a 31 speed DC motor. LED with CCT Select Light kit, blades and motor sold separately. This ceiling fan is wet rated for indoor or outdoor use. It can be controlled using the Fanimation Wi-Fi fanSync application.
    Location Rating:
    Additional options that would change other selections
    Motor Finish Method Type:
    Additional options that would change other selections
    Additional Information
    CONTROL: Includes a Wi-Fi receiver and TR305 handheld remote with two 3V CR2032 batteries - Push buttons control 16 variable fan speeds.
    FINISH: Brushed Satin Brass
    Infinite light levels, color temperature, fan/light timer, powering on/off, and fresh air, reverse, home away, safe exit modes

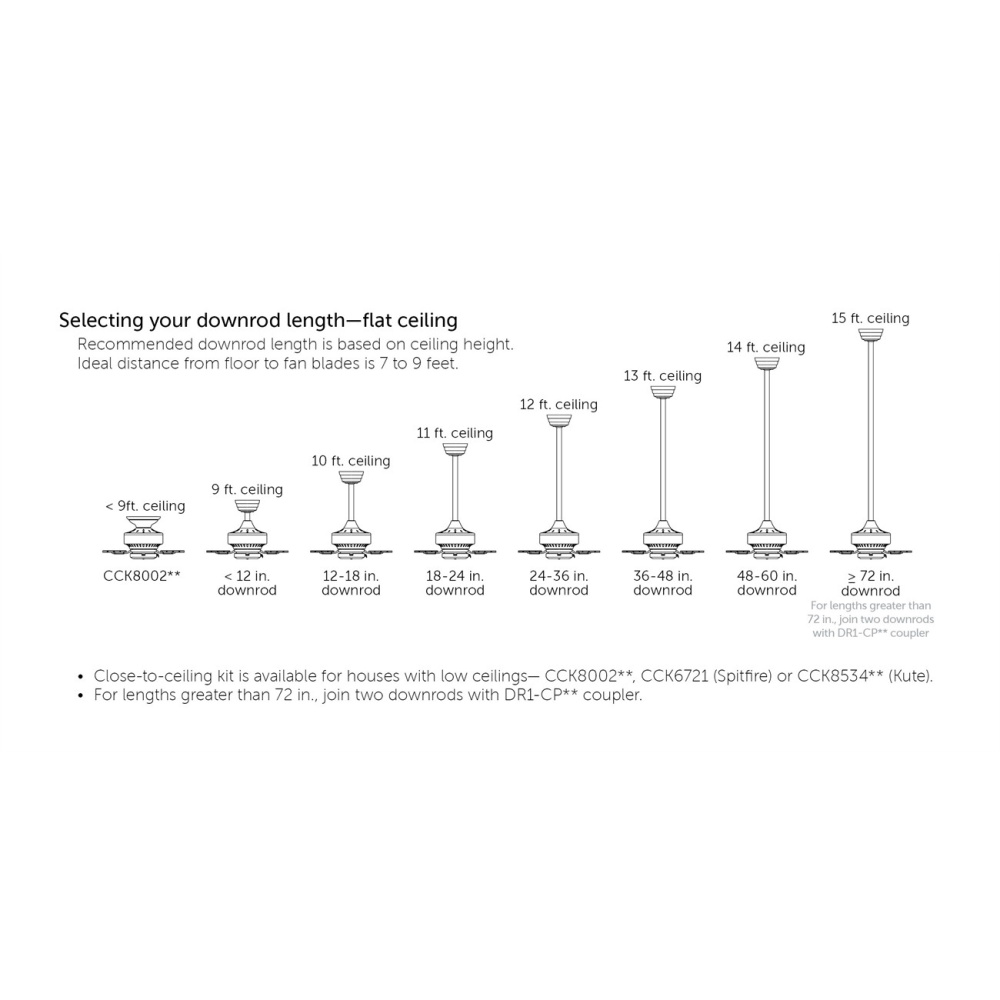

    INSTALLATION: Mounts to flat or minimally sloped ceilings with the included 1-in diameter x 8-in length downrod - optional downrods are available in lengths up to 72 inches to adjust the fans height to 7ft - 9ft from the floor, ensuring maximum airflow
    LIGHTING: 18-Watt dimmable LED light kit with Correlated Color Temperature (CCT) Select technology and opal frosted glass available for added versatility (light kit sold separately)
    LOCATION: This ceiling fan is Wet Rated for use in indoor and outdoor spaces, making it ideal for any indoor room or spaces like gazebos, patios, pergolas, or porches
    POWER: The 16-speed, quiet and energy efficient DC motor can provide airflow up to 10,387 CFM
    SAVINGS: Features a reversible motor, allowing you to switch the direction of your fan's rotation and create energy savings
    TECHNOLOGY: Includes fanSync Wi-Fi connectivity, allowing the fan to pair with most smart home devices
    WARRANTY: Limited lifetime
    Info & Guides
    Technical Details
    Details
    Category:
    Fans
    Subcategory:
    Ceiling Fans
    Finish:
    Brass /vendors/vendorImages brass.jpg
    Option:
    Energy Efficient
    Outdoor
    Damp Rated
    Prop 65 /vendors/vendorImages prop65.png
    Finish:
    Brushed Satin Brass
    Option:
    Energy Efficient
    Outdoor
    Prop 65 /vendors/vendorImages prop65.png
    Family:
    TriAire Custom
    Voltage:
    120 V
    Air Flow CFM:
    10387
    Air Flow Efficiency:
    342
    Blade Pitch:
    14
    Canopy:
    5.75 Dia x 2.57 H
    Harmonized Codes:
    8414.51.3000
    Light Kit Included:
    No
    Motor Size:
    153 x 25
    Motor Type:
    DC
    Ship Carton Height:
    8.35
    Ship Carton Length:
    15.94
    Ship Carton Width:
    8.86
    Ship Weight:
    15.08
    Sold By:
    Each
    Warranty:
    1 Year
    Weight:
    13.67
    Airflow Efficiency Low:
    723
    Airflow Efficiency Medium:
    757
    Avg Airflow Efficiency:
    378
    Avg CFM Energy:
    7827
    Avg Energy Use:
    21

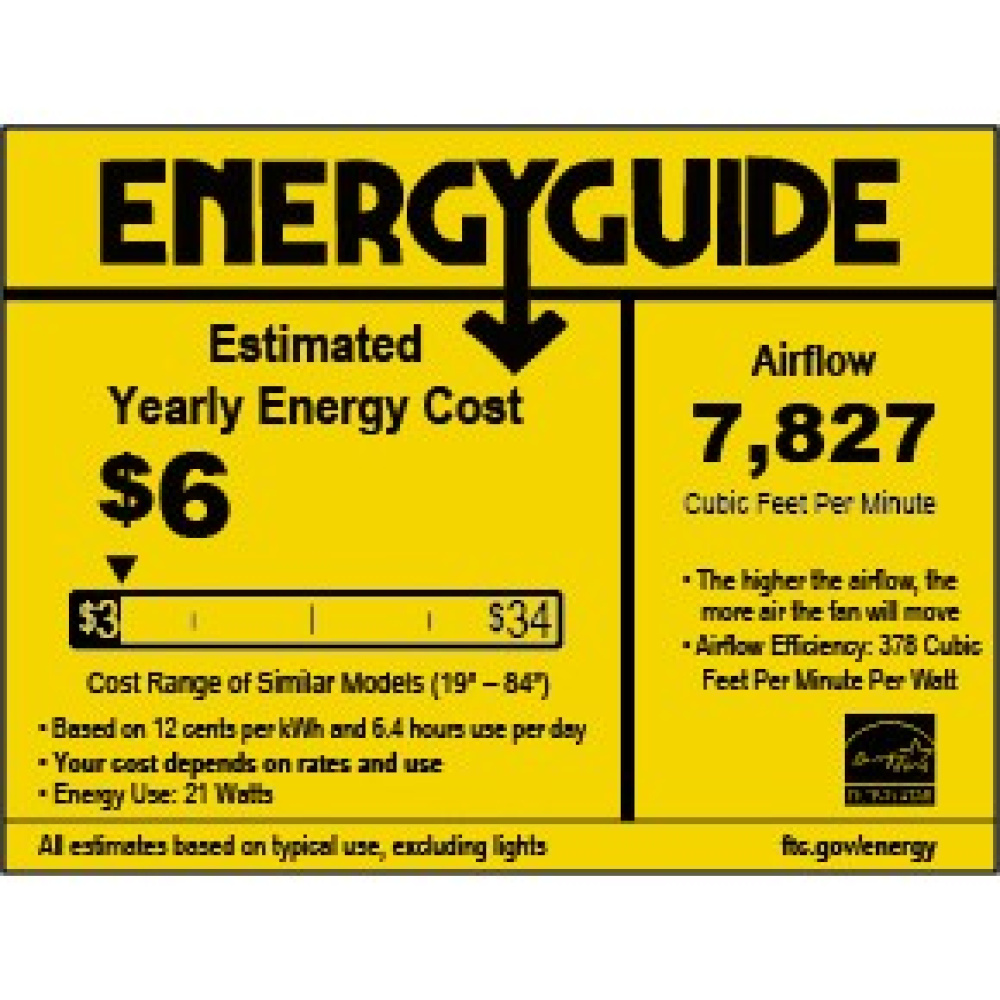

    Avg Estimated Yearly Energy Cost:
    6
    Avg Estimated Yearly Energy Cost on HIGH:
    8
    Cap Included:
    Yes
    Carton Cubic Feet:
    0.68
    Case Height:
    8.35
    Case Length:
    15.94
    Case Quantity:
    1
    Case Weight Pounds:
    15.08
    Case Width:
    8.86
    CEC Uploaded:
    Yes
    Ceiling To Blade Edge:
    16.42
    Ceiling To Bottom (No Light Kit):
    15.92
    Ceiling To Bottom (With Light Kit):
    18.12
    CFM Low:
    1734
    CFM Medium:
    6891
    Country of Origin:
    China
    Current Draw High:
    0.43
    Current Draw Low:
    0.05
    Current Draw Medium:
    0.14
    DOE Classification:
    LSSD
    DOE-FTC Uploaded:
    Yes
    Downrod Length:
    8
    Energy Efficient:
    Yes
    Exempt from DOE Procedure:
    No
    Housing Diameter:
    7.09
    Included Control:
    TR305
    Included Control Type:
    Handheld
    Indoor:
    Yes
    Leadwire:
    80
    Location Rating:
    Damp Rated

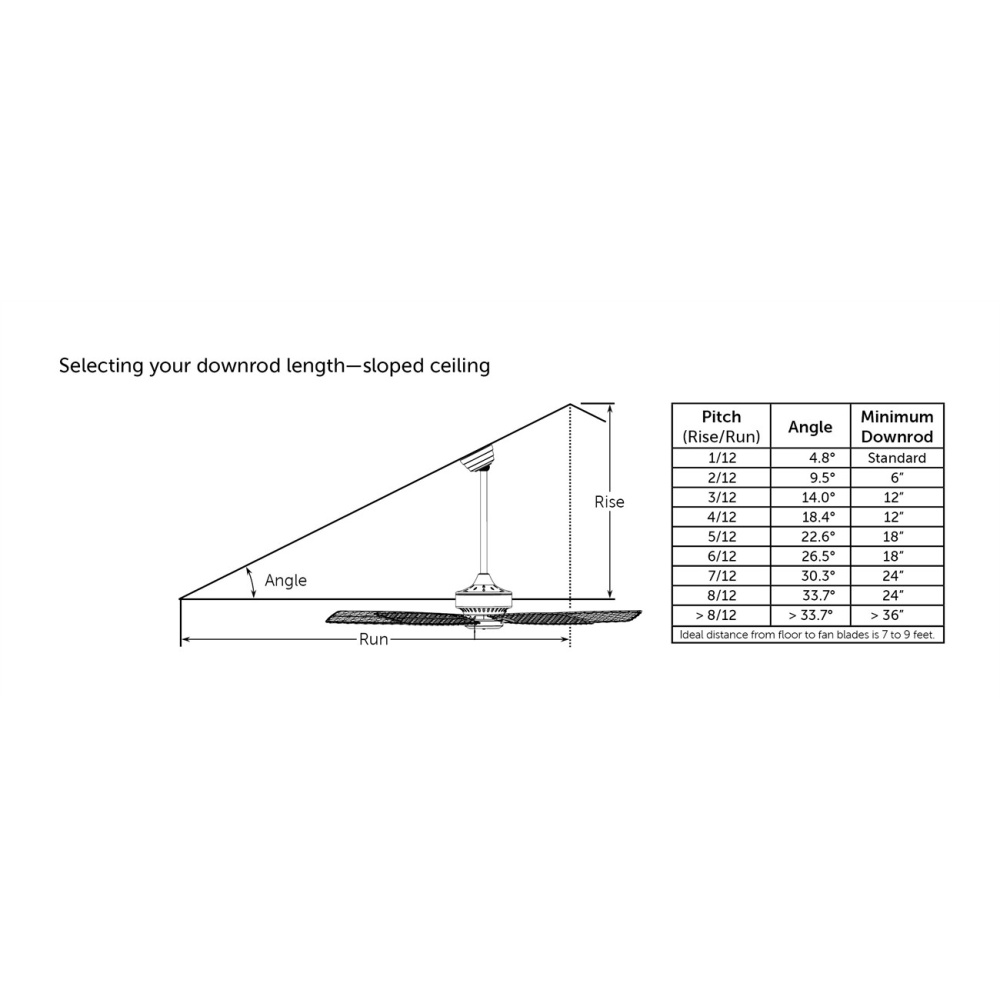

    Max Ceiling Slope:
    27
    Max Length:
    84
    Max Width:
    84
    Motor Finish Method Type:
    Plated
    Motor Reversible:
    Yes
    Number of Blades:
    3
    Number Of Speeds:
    16
    Outdoor:
    Yes
    Prop 65:
    Yes
    Prop 65 Description:
    This product can expose you to chemicals including Lead which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    Regulated Product:
    Yes
    Reverse Switch Location:
    Control
    RPM High:
    100
    RPM Low:
    28
    RPM Medium:
    66
    Safety Rating:
    UL Approved, cUL Approved
    Voltage Cycles:
    60 Hz
    Watts High:
    30
    Watts Low:
    2
    Watts Medium:
    9
