Part Number: MAD8531GR / Vendor ID Number: 778 / Custom:

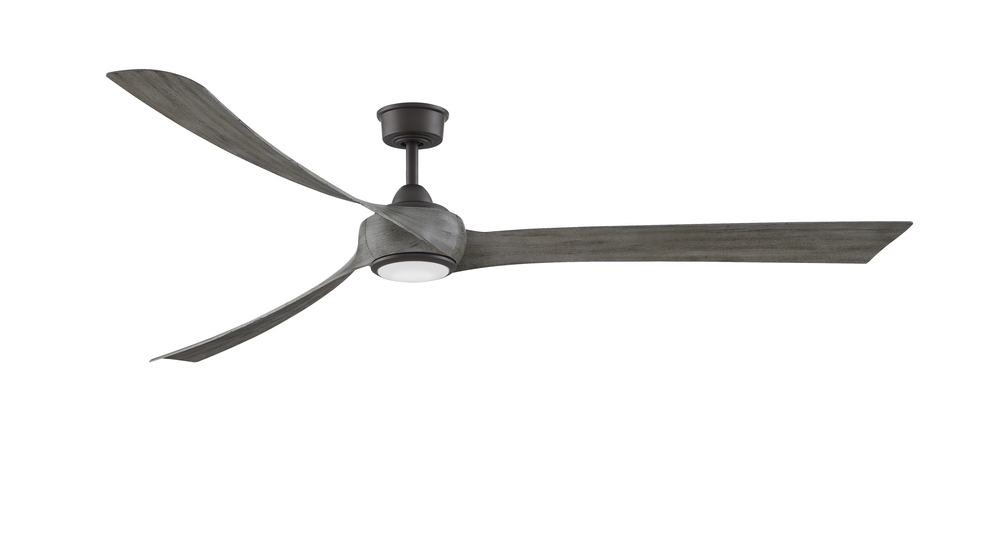

Wrap Custom Motor - GR

Wrap Custom Motor - GR

Call For Price
  • Manufacturer has 251 items available.
  • More Items available 03/19/2026.
    •

    Add To Cart
    Add To Estimate
    Add To Wishlist
    Compare Item
    Qty
    Product Specification
    Dimensions
    Height: 15.96"
    Width: 64.00"
    Product Overview
    Wrap yourself in style with this sophisticated ceiling fan from Fanimation. With many motor and blade finish combinations available, Wrap Custom is a versatile ceiling fan. LED and CCT Select Light kit, blades and motor sold separately. This ceiling fan is Damp Rated for indoor or outdoor use. It can also be controlled by using the Fanimation Wi-Fi fanSync application.
    Wrap yourself in style with this sophisticated ceiling fan from Fanimation. With many motor and blade finish combinations available, Wrap Custom is a versatile ceiling fan. Light kit, blades and motor sold separately. *Damp Rated for indoor or outdoor use *Can be controlled using the Fanimation Bluetooth fanSync app *Reversible airflow for multi-season use
    Finish:
    Motor Finish Method Type:
    Additional options that would change other selections
    Motor Size:
    Additional options that would change other selections
    Additional Information
    CONTROL: Includes a Wi-Fi receiver and TR305 handheld remote with two 3V CR2032 batteries - Push buttons control 16 variable fan speeds.
    FINISH: Matte Greige ceiling fan motor from the Wrap Custom collection - Set of three Damp Rated blades available in multiple finishes (sold separately)
    Infinite light levels, color temperature, fan/light timer, powering on/off, and fresh air, reverse, home away, safe exit modes
    INSTALLATION: Mounts to flat or minimally sloped ceilings with the included 1-in diameter x 8-in length downrod - optional downrods are available in lengths up to 72 inches to adjust the fans height to 7ft - 9ft from the floor, ensuring maximum airflow
    LIGHTING: 18-Watt dimmable LED light kit with Correlated Color Temperature (CCT) Select technology and opal frosted glass available for added versatility (light kit sold separately)
    LOCATION: This ceiling fan is Damp Rated for use in indoor and outdoor covered spaces exposed to moisture and humidity
    POWER: The 16-speed, quiet and energy efficient DC motor can provide airflow up to 11,206 CFM
    SAVINGS: Features a reversible motor, allowing you to switch the direction of your fan?s rotation and create energy savings
    TECHNOLOGY: Includes fanSync Wi-Fi connectivity, allowing the fan to pair with most smart home devices
    WARRANTY: Limited lifetime
    Info & Guides
    Click Here to View Specsheets
    Technical Details
    Details
    Category:
    Fans
    Subcategory:
    Fan Motor Without Blades
    Finish:
    Gray /vendors/vendorImages gray.jpg
    Miscellaneous /vendors/vendorImages miscellaneous.jpg
    Style:
    Traditional
    Option:
    Energy Efficient
    Energy Star /vendors/vendorImages energy star.jpg
    Outdoor
    Damp Rated
    Prop 65 /vendors/vendorImages prop65.png
    Voltage:
    10-99
    Number of Blades:
    3 Blades
    Location Rating:
    Damp Rated
    Finish:
    Matte Greige
    Option:
    Energy Efficient
    Energy Star /vendors/vendorImages energy star.jpg
    Outdoor
    Prop 65 /vendors/vendorImages prop65.png
    Family:
    Wrap Custom
    Voltage:
    120 V
    Air Flow CFM:
    11206
    Air Flow Efficiency:
    366
    Blade Pitch:
    Varied
    Canopy:
    6.14 Dia x 2.55 H
    Harmonized Codes:
    8414.51.3000
    Light Kit Included:
    No
    Motor Size:
    153-25FS
    Motor Type:
    DC
    Ship Carton Height:
    7.6
    Ship Carton Length:
    16.34
    Ship Carton Width:
    8.86
    Ship Weight:
    16.1
    Sold By:
    Each
    Warranty:
    Limited Lifetime
    Weight:
    13.3
    Airflow Efficiency Low:
    1172
    Airflow Efficiency Medium:
    827
    Avg Airflow Efficiency:
    420
    Avg CFM Energy:
    8762
    Avg Energy Use:
    21
    Avg Estimated Yearly Energy Cost:
    6
    Avg Estimated Yearly Energy Cost on HIGH:
    9
    Cap Included:
    Yes
    Carton Cubic Feet:
    0.64
    Case Height:
    7.6
    Case Length:
    16.34
    Case Quantity:
    1
    Case Weight Pounds:
    16.1
    Case Width:
    8.86
    CEC Uploaded:
    Yes
    Ceiling To Blade Edge:
    15.33
    Ceiling To Bottom (No Light Kit):
    15.96
    Ceiling To Bottom (With Light Kit):
    16.55
    CFM Low:
    3516
    CFM Medium:
    7859
    Country of Origin:
    China
    Current Draw High:
    0.43
    Current Draw Low:
    0.05
    Current Draw Medium:
    0.15
    DOE Classification:
    LSSD
    DOE-FTC Uploaded:
    Yes
    Downrod Length:
    8
    Energy Efficient:
    Yes
    Energy Star:
    Yes
    Exempt from DOE Procedure:
    No
    Housing Diameter:
    8.88
    Included Control:
    TR305
    Included Control Type:
    Handheld
    Indoor:
    Yes
    Leadwire:
    80
    Location Rating:
    Damp Rated
    Max Ceiling Slope:
    27
    Max Length:
    84
    Max Width:
    84
    Motor Finish Method Type:
    Painted
    Motor Reversible:
    Yes
    Number of Blades:
    3
    Number Of Speeds:
    16
    Outdoor:
    Yes
    Prop 65:
    Yes
    Prop 65 Description:
    This product can expose you to chemicals including Lead which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    Regulated Product:
    Yes
    Reverse Switch Location:
    Control
    RPM High:
    81
    RPM Low:
    29
    RPM Medium:
    56
    Safety Rating:
    UL Approved, cUL Approved
    Voltage Cycles:
    60 Hz
    Watts High:
    31
    Watts Low:
    3
    Watts Medium:
    10
