Item Sales Info

Part Number: 906030FHB-LDA / Vendor ID Number: 757 / Custom:

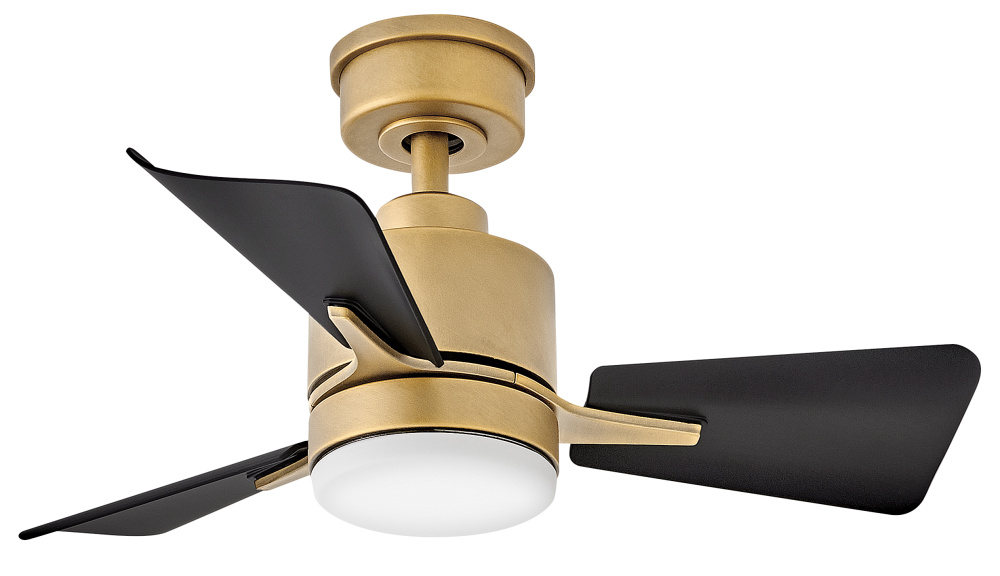

Atom 30" LED Fan

471

Pack Of: 1

Manufacturer has 207 items available.

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Qty

Product Specification

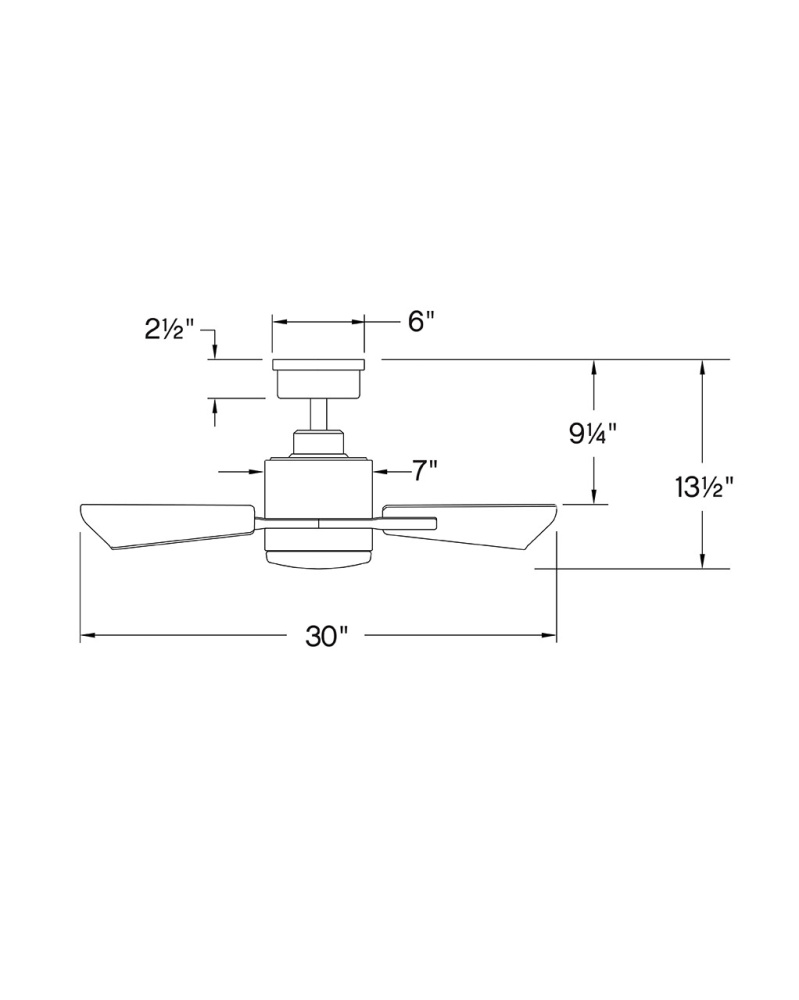

Dimensions

Height: 13.25"

Width: 30.00"

Product Overview

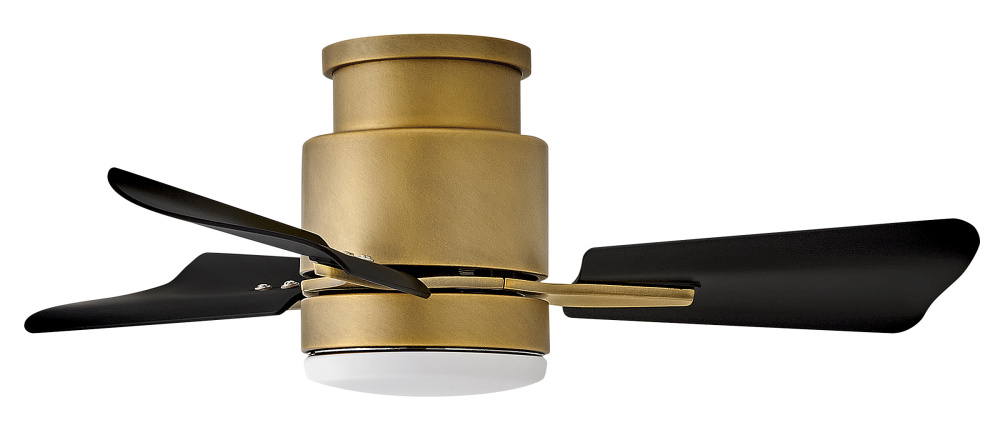

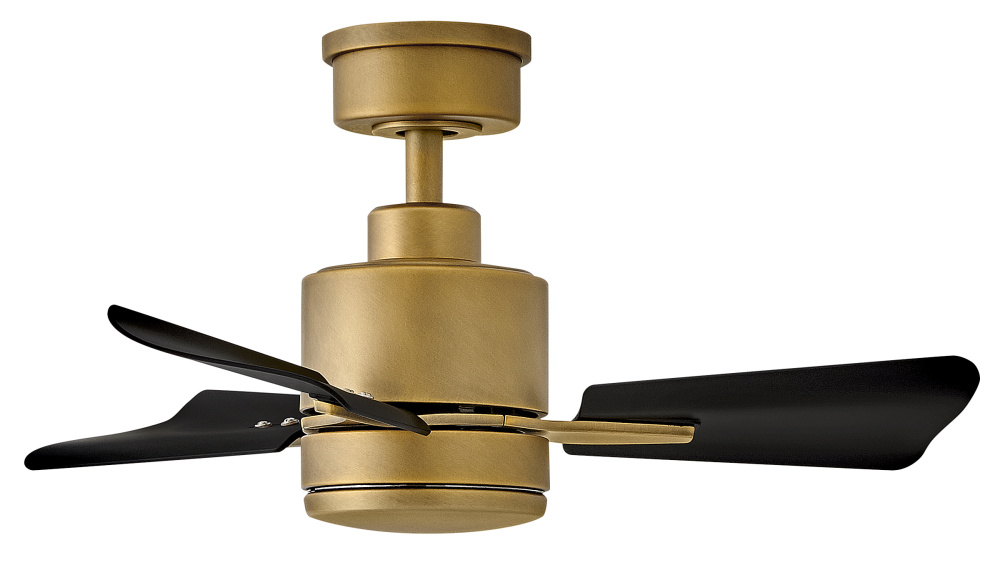

Part of the Regency Series, Atom's compact modern profile complements functionality with classic finishes to perfectly accentuate smaller spaces. Its damp-rated design is suitable for both interior and covered outdoor areas. Dimmable Integrated LEDs emit warm, even light, creating a comfortable atmosphere. Atom mounts directly to its canopy or with the included downrod for dual mount capability. This will result in an overall fan height of 10" and a ceiling-to-blade height of 5 3/4

Finish:

Blade Finish:

Additional options that would change other selections

Info & Guides

Click Here to View Spec Sheet Basic

Click Here to View Spec Sheet Details

Click Here to View Installation Sheet

Technical Details

Details

Category:

Fans

Subcategory:

Ceiling Fans with Light

Finish:

Brass /vendors/vendorImages brass.jpg

Style:

Traditional

Option:

Title 24 /vendors/vendorImages ca title 24 compliant.jpg

Damp Rated

Category:

Fan

Finish:

Heritage Brass

Style:

Traditional

Family:

Atom

Glass:

Etched Opal

Voltage:

120 V

Number of Bulbs:

1 Bulbs

Air Flow Efficiency:

2845

Amperage:

0.46

Blade Finish:

Matte Black

Blade Pitch:

Blade Span:

Blades Included:

Yes

Bulb Dimmable:

Yes - CL Type Dimmer (SSL7A)

Bulb Hours:

50000

Bulb Type:

LED

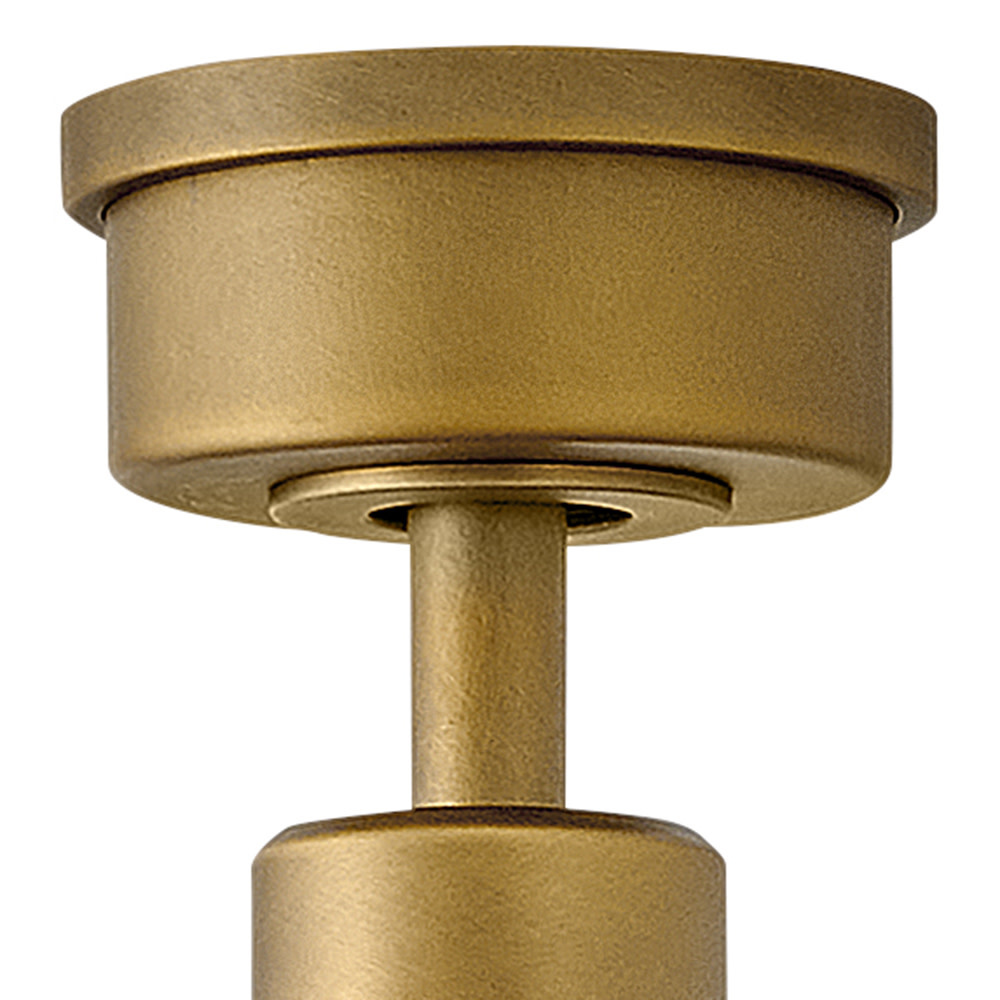

Canopy:

6 Dia. x 2.25 D

Introduction Date:

01/01/2024

Kelvin:

3000

Light Kit Included:

Yes

Lumens / Light Output:

1320

Material:

Steel

Motor Size:

153 x 12

Motor Type:

Ship Carton Height:

9.53

Ship Carton Length:

17.44

Ship Carton Width:

16.38

Ship Weight:

15.26

Vendor Ship Method:

Parcel

Weight:

13.23

Airflow Avg:

2114

AMPS Avg:

0.34

Avg Energy Use:

Blade Material:

Composite

Blade Options Available:

Blade To Ceiling Height:

Blades Reversible:

Bulb CRI:

Bulb Included:

Yes

Country of Origin:

China

DM Airflow Avg:

1690

DM Airflow High:

2314

DM AMPS Avg:

0.32

DM AMPS High:

0.43

DM Avg Energy Use:

DM Efficiency Avg:

DM Efficiency High:

49.2

DM Energy Cost Avg:

DM Energy Cost High:

13.18

DM Energy Use High:

DM RPMS Avg:

100

DM RPMS High:

223

Dual Mount:

Yes

Efficiency Avg:

Efficiency High:

Energy Cost Avg:

Energy Cost High:

15.36

Energy Use High:

54.8

Fan Control:

Yes

Flush Mount Fan:

Incandescent Equivalency:

100 W

Light Kit Adaptable:

Light Source:

Integrated LED

Location Rating:

Damp Rated

Max Wattage:

16 W

Motor Fan Speed:

Number of Blades:

Operating Frequency:

Prop 65 Description:

CALIFORNIA PROP 65: WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Receiver Included:

Yes

Reversing Control:

Yes

RPMS Avg:

174

RPMS High:

234

Safety Rating:

UL Approved, C-US Approved

Single Power Switch:

Slope:

Sloped Ceiling Adaptable:

Yes

Stand By Power:

0.29

Title 24:

Yes
