Item Sales Info
Part Number: 903752FDB-NDD / Vendor ID Number: 757 / Custom:

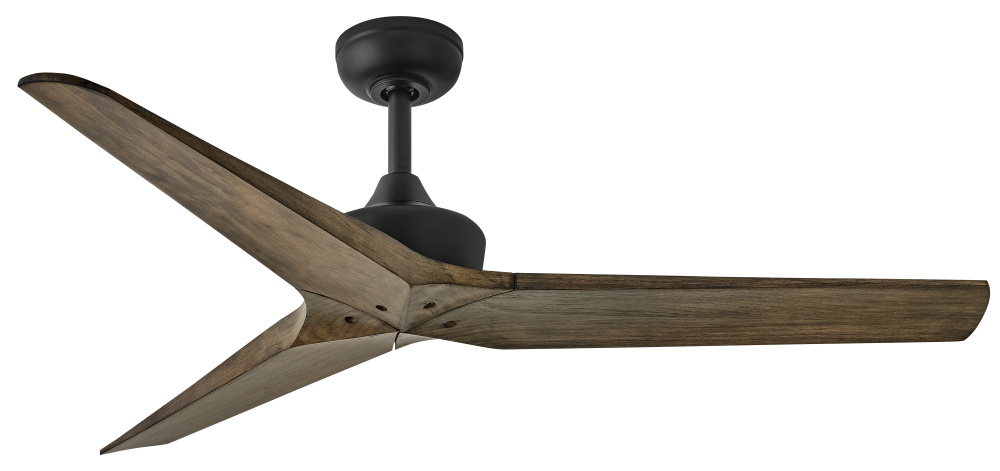

Chisel 52" Smart Fan

Chisel 52" Smart Fan

824
99
Pack Of: 1
  • Manufacturer has 90 items available.
  • More Items available 04/16/2026.
    •

    Add To Cart
    Add To Estimate
    Add To Wishlist
    Compare Item
    Qty
    Product Specification

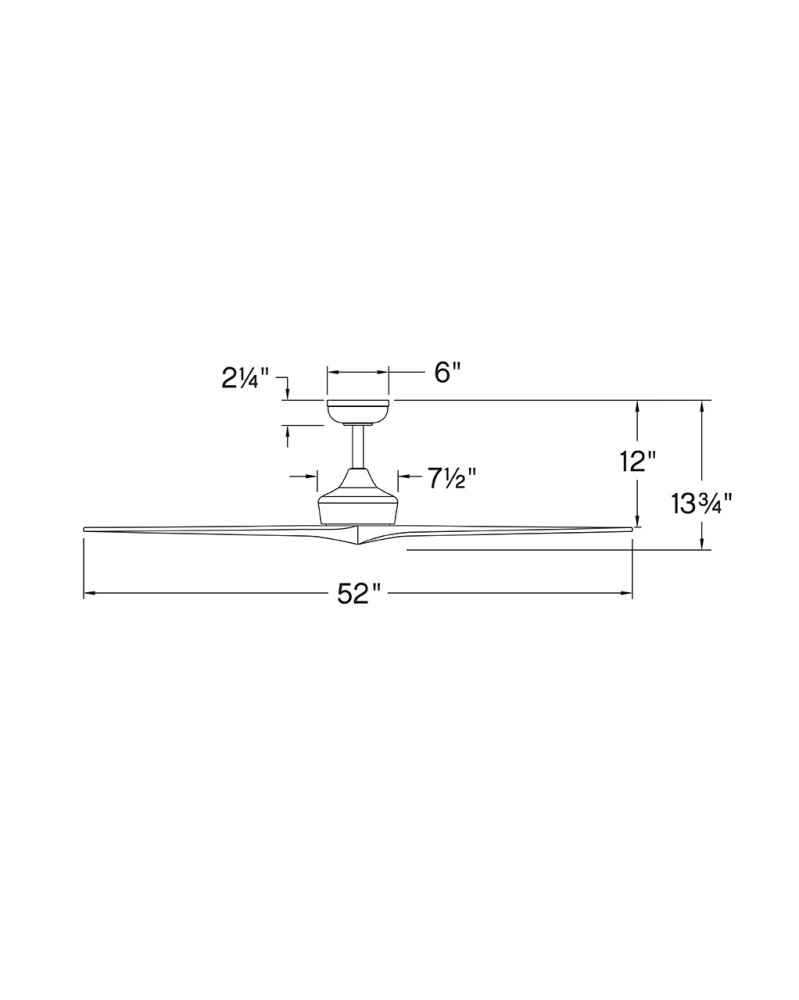

    Dimensions
    Height: 13.75"
    Width: 52.00"
    Product Overview
    Built with a sleek, carefully crafted design, Chisel redefines dramatic style. Sturdy solid wood blades are available in a variety of sophisticated finishes to complement modern interiors and outdoor settings. Damp rated. Equipped with a 6-speed DC motor that is WiFi enabled and ready to connect right out of the box. Operated by the HIRO control or WiFi compatible with the Hinkley App.
    Finish:
    Blade Finish:
    Additional options that would change other selections
    Motor Size:
    Additional options that would change other selections
    Canopy:
    Additional options that would change other selections
    Info & Guides
    Click Here to View Spec Sheet Basic
    Click Here to View Spec Sheet Details
    Click Here to View Installation Sheet
    Technical Details
    Details
    Category:
    Fans
    Subcategory:
    Ceiling Fans
    Finish:
    Black /vendors/vendorImages black.jpg
    Style:
    Modern
    Option:
    Damp Rated
    Category:
    Fan
    Finish:
    Matte Black
    Style:
    Modern
    Family:
    Chisel
    Voltage:
    120 V
    Air Flow Efficiency:
    6292
    Amperage:
    0.53
    Blade Finish:
    Driftwood
    Blade Pitch:
    13
    Blade Span:
    52
    Blades Included:
    Yes

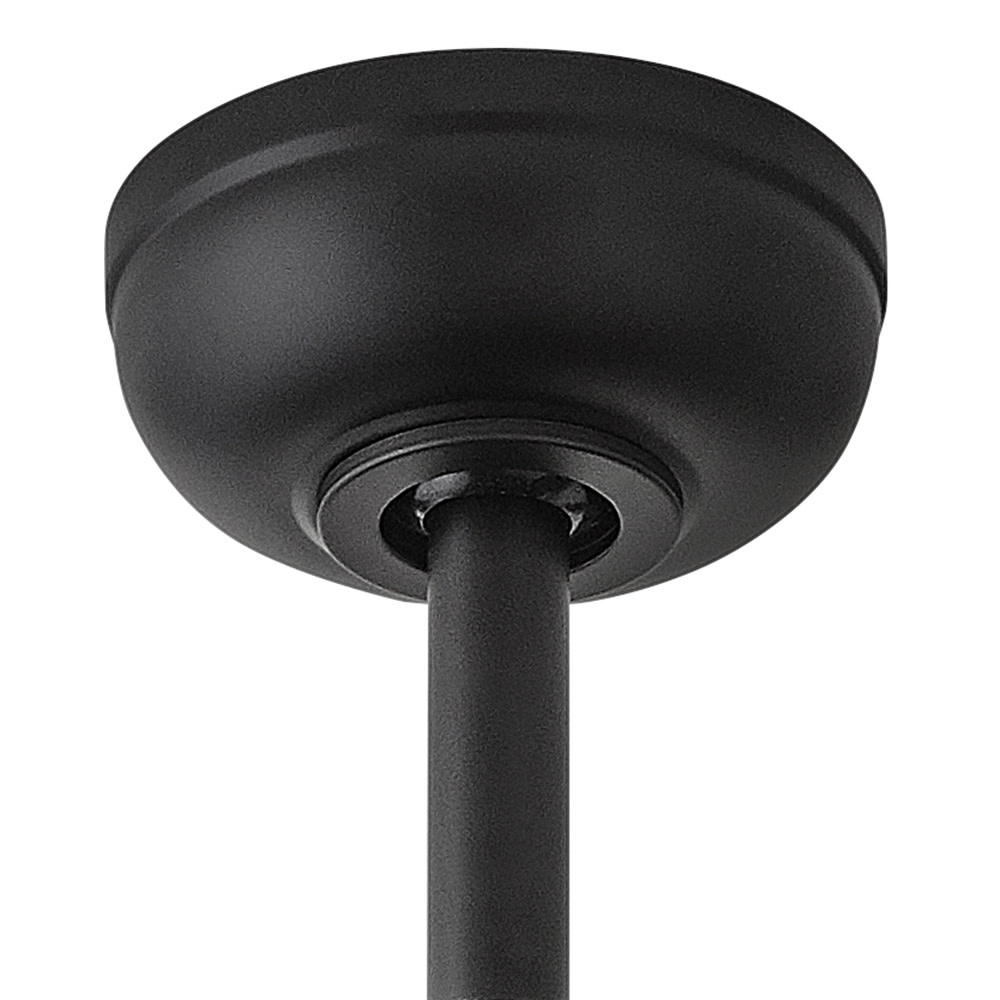

    Canopy:
    6 Dia. x 2.25 D
    Introduction Date:
    01/01/2024
    Light Kit Included:
    No
    Material:
    Steel
    Motor Size:
    DCS-30NS
    Motor Type:
    DC
    Ship Carton Height:
    10.1
    Ship Carton Length:
    33.4
    Ship Carton Width:
    16
    Ship Weight:
    25.3
    Vendor Ship Method:
    Parcel
    Weight:
    23.1
    Airflow Avg:
    4004
    AMPS Avg:
    0.29
    Avg Energy Use:
    25
    Blade Material:
    Wood
    Blade Options Available:
    No
    Blade To Ceiling Height:
    12
    Blades Reversible:
    No
    Bulb Included:
    No
    Control Type:
    HIRO Control - 6 Speed Reversing
    Country of Origin:
    Taiwan
    Dual Mount:
    No
    Efficiency Avg:
    160
    Efficiency High:
    166
    Energy Cost Avg:
    7
    Energy Cost High:
    10.65
    Energy Use High:
    38
    Fan Control:
    Yes
    Flush Mount Fan:
    No
    Light Kit Adaptable:
    No
    Location Rating:
    Damp Rated
    Motor Fan Speed:
    6
    Number of Blades:
    3
    Operating Frequency:
    60
    Prop 65 Description:
    CALIFORNIA PROP 65: WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    Receiver Included:
    Yes
    Reversing Control:
    Yes
    RPMS Avg:
    130
    RPMS High:
    210
    Safety Rating:
    UL Approved, C-US Approved
    Single Power Switch:
    No
    Slope:
    20
    Sloped Ceiling Adaptable:
    Yes
    Stand By Power:
    1.34
    Title 24:
    No
    WIFI Control Included:
    Yes
    WIFI Control Optional:
    No
