Part Number: 907358FBB-LDD / Vendor ID Number: 757 / Custom:

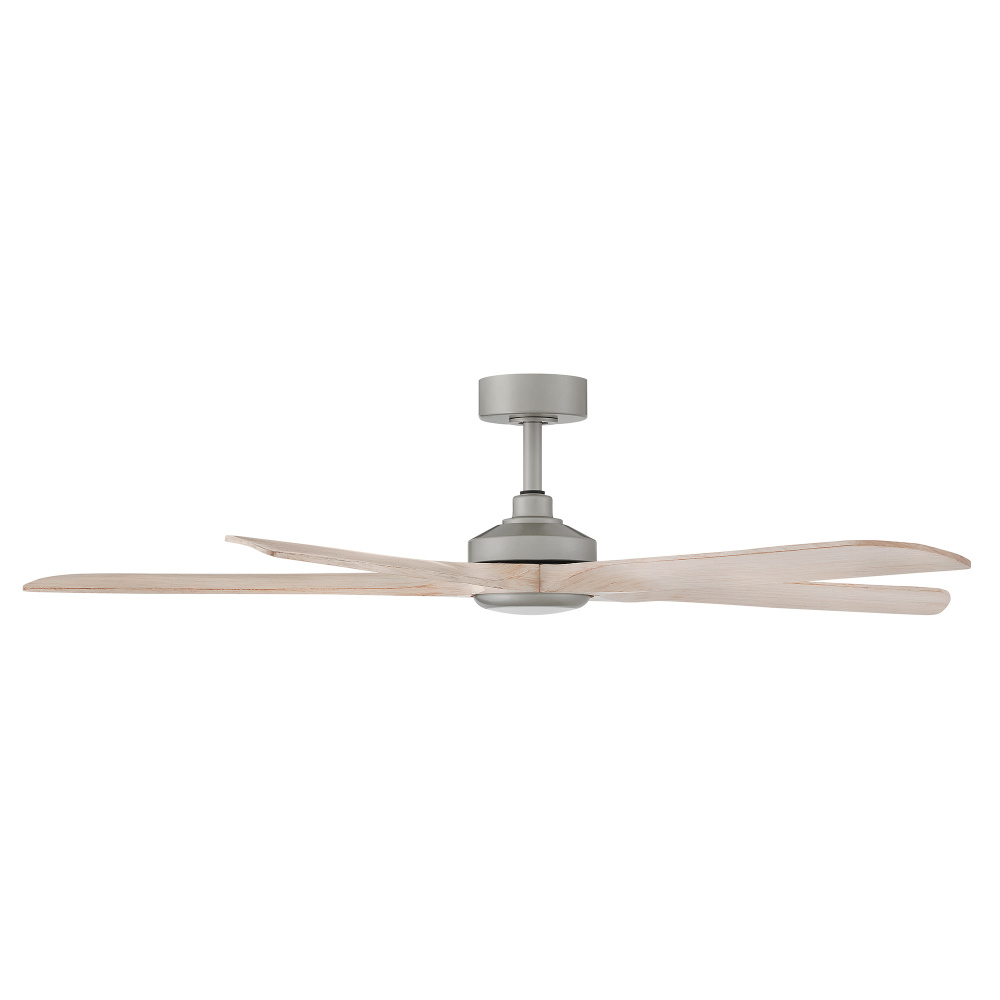

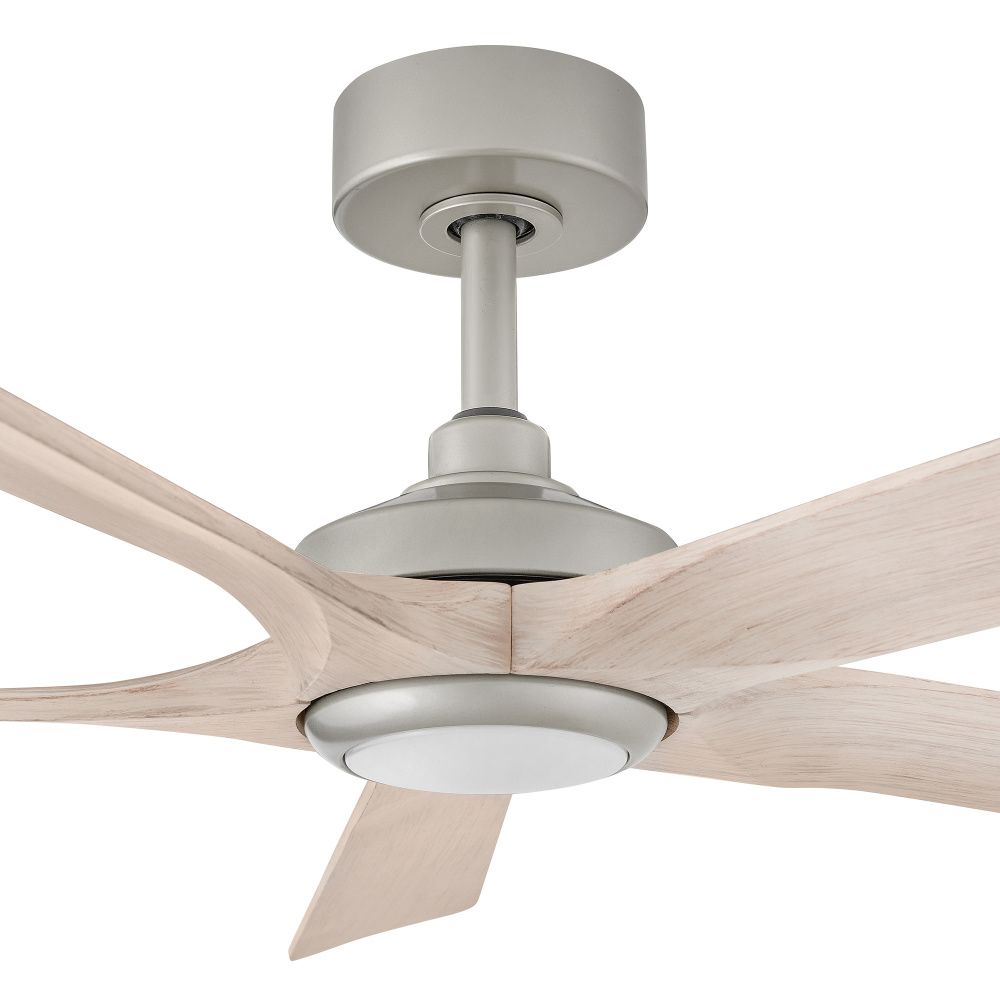

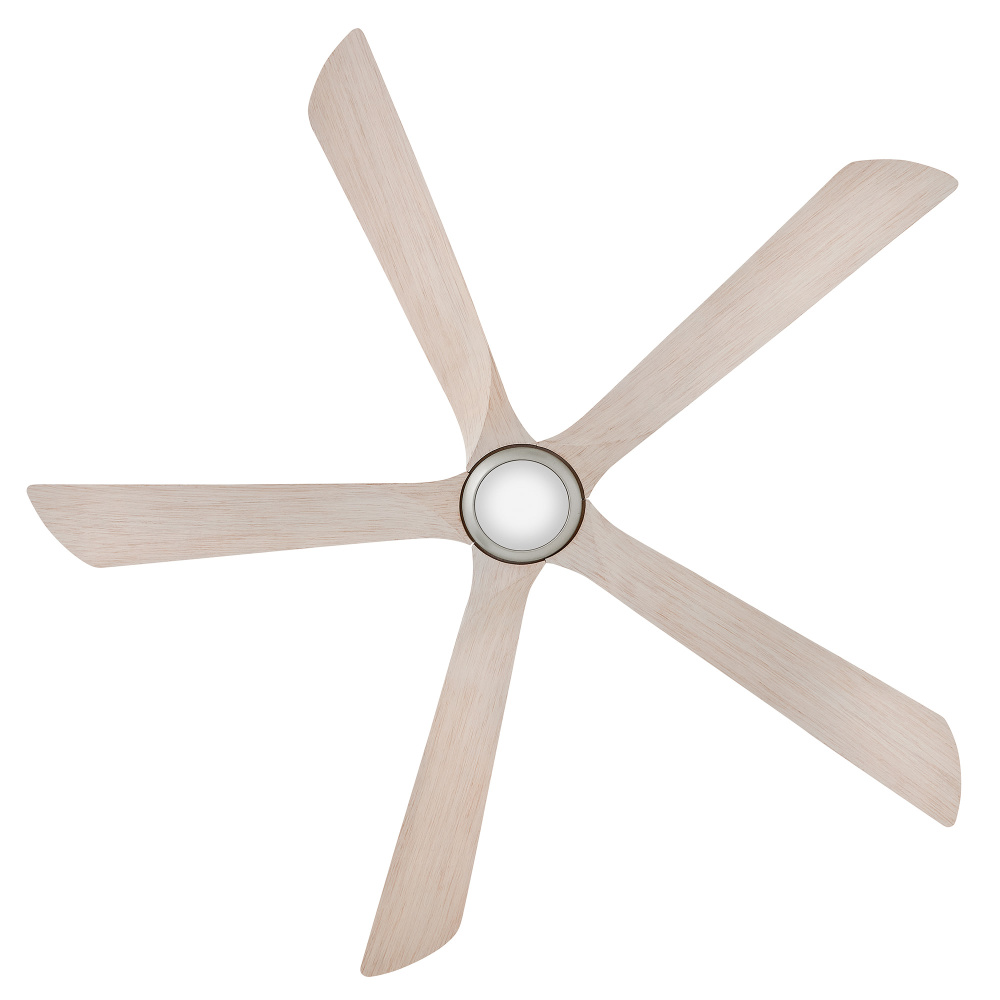

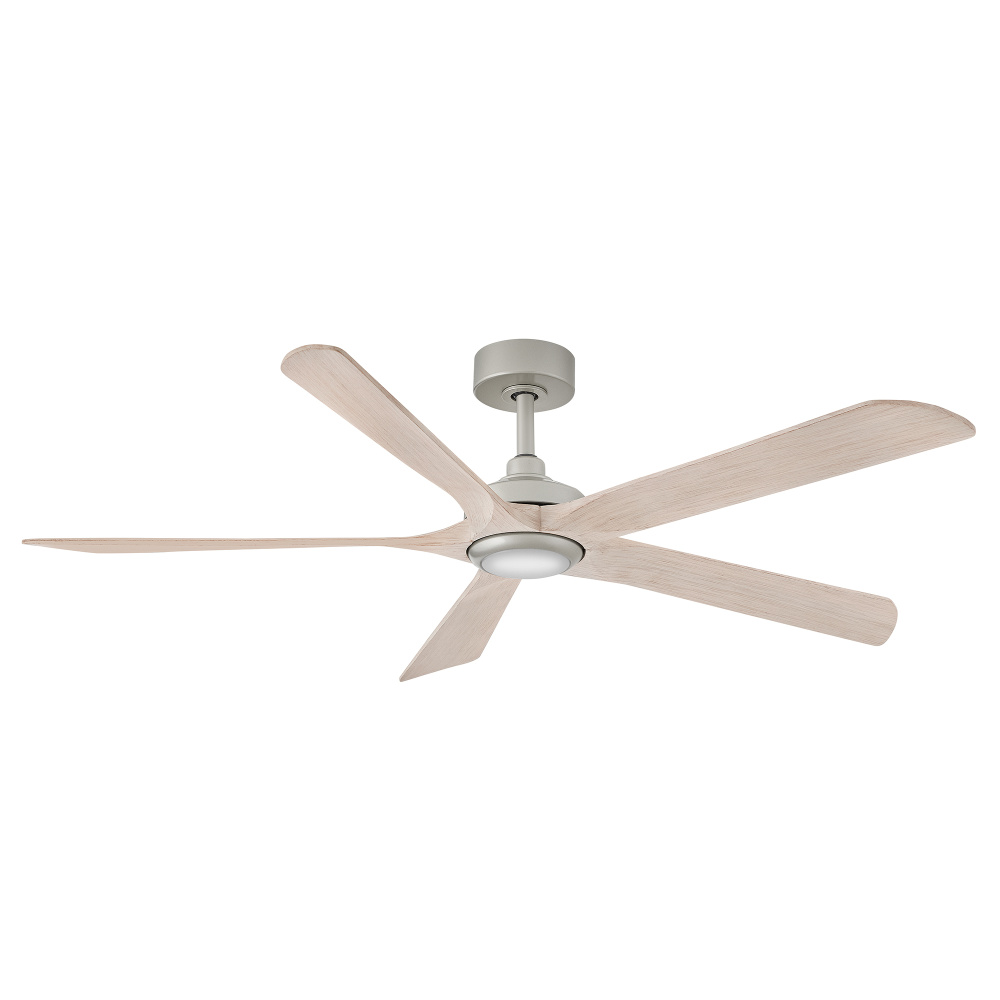

Layton 58" Smart Fan

910

Pack Of: 1

Manufacturer has 245 items available.

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Qty

Product Specification

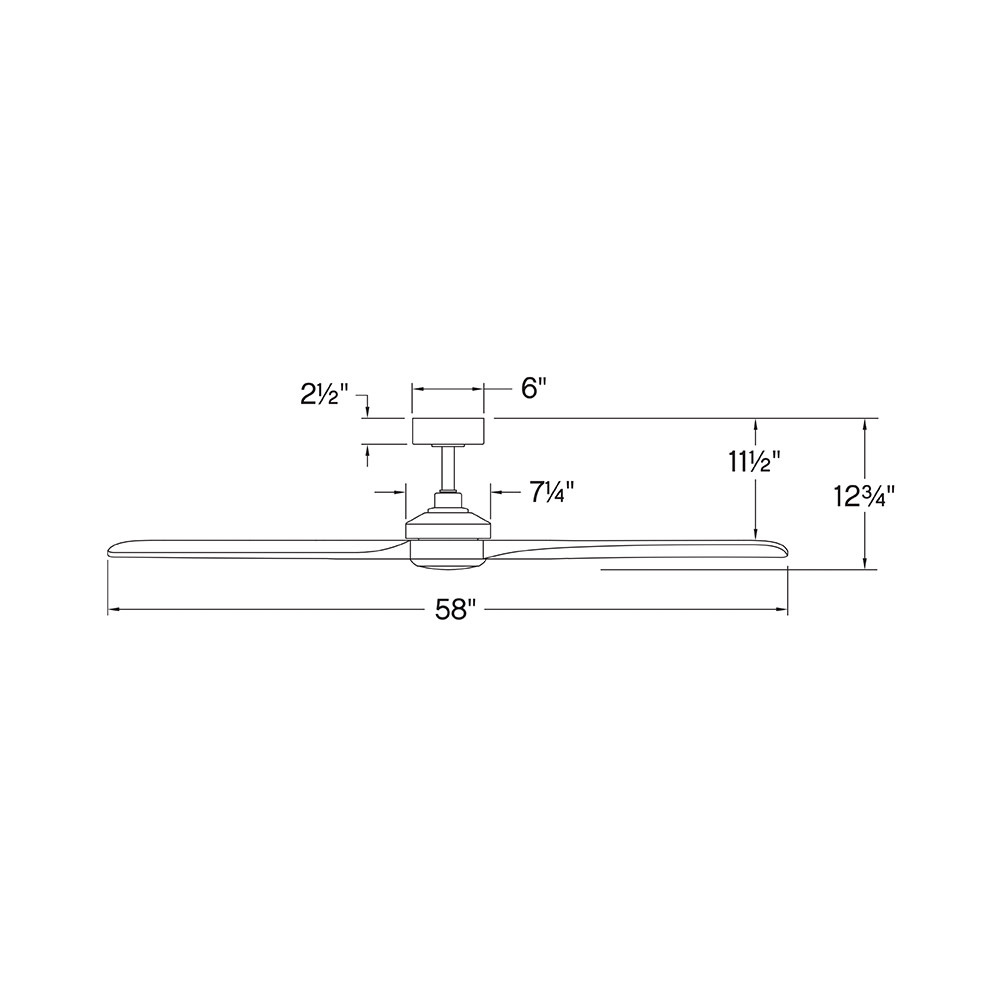

Dimensions

Height: 12.75"

Width: 58.00"

Product Overview

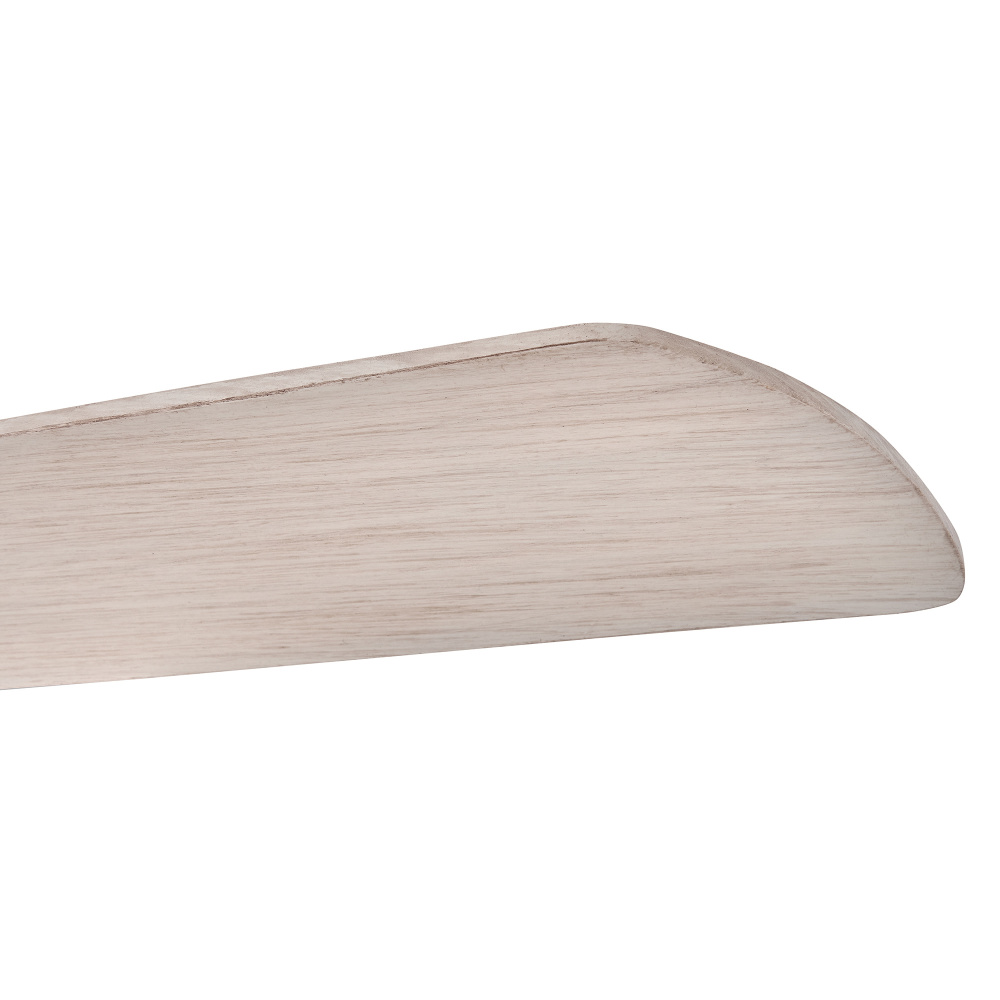

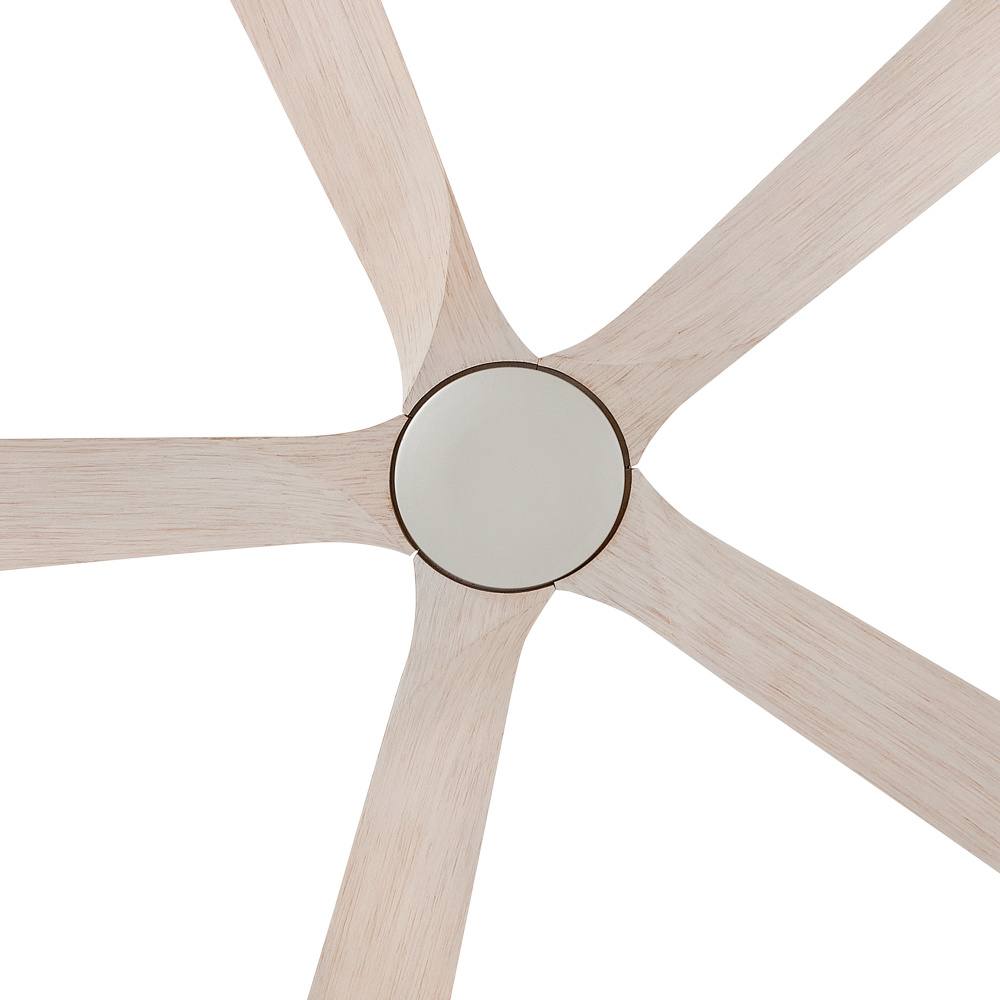

Layton’s versatile, transitional design features subtly curved wood blades, available in a variety of finish combinations to complement any interior living space. Integrated LEDs cast warm, dimmable illumination that fills your space with a comfortable atmosphere. Equipped with a 6-speed DC motor that is WiFi enabled and ready to connect right out of the box. Operated by the HIRO control or WiFi compatible with the Hinkley App.

Finish:

Blade Finish:

Additional options that would change other selections

Blade To Ceiling Height:

Additional options that would change other selections

Dimmer Type:

Additional options that would change other selections

Additional Information

Can be hung on a sloped ceiling

Control your fan's power, light, speed, direction, and so much more from the Hinkley Home Automation app

Dry Rated

Energy-efficient integrated LED - safer for the environment and low maintenance

Fan Control included, 6 Spd HIRO:R

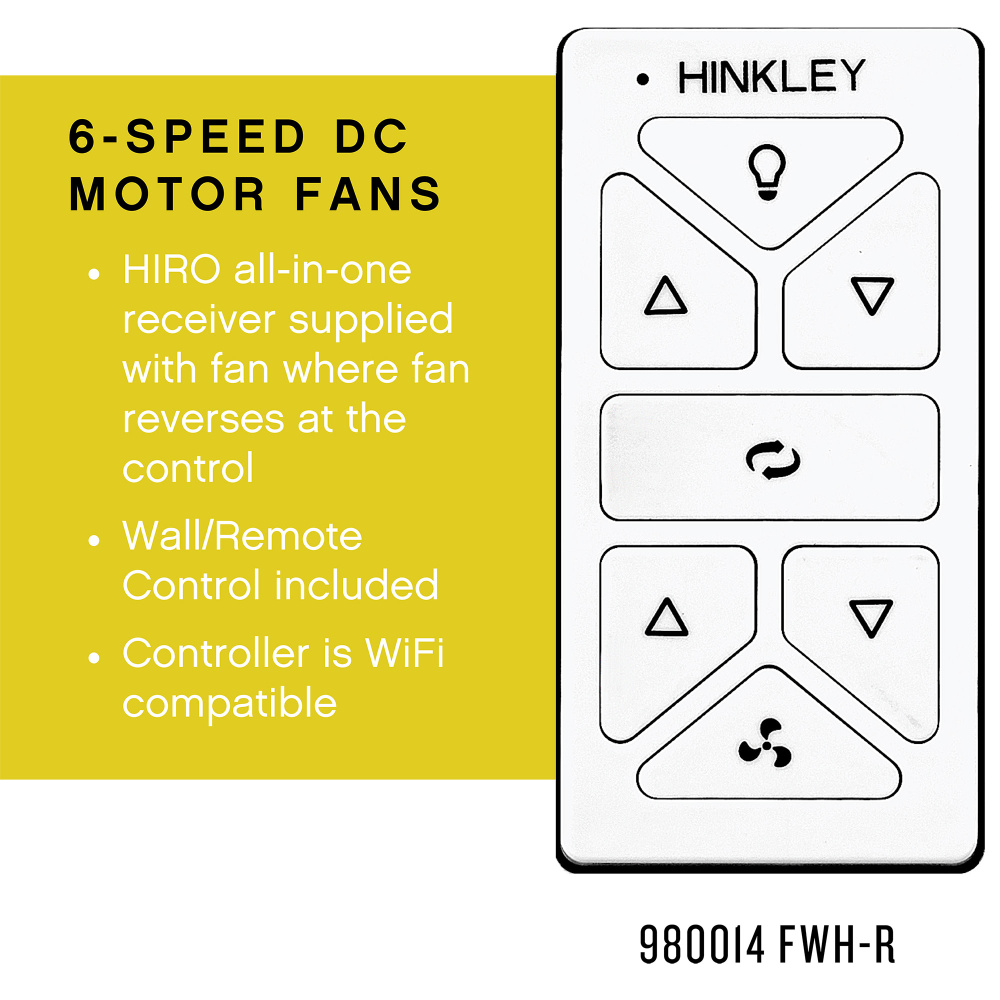

Fan Control included, HIRO Control - 6 Speed Reversing. All-in-one HIRO remote controls power, speed, direction, and lighting; use as a wall control or portable remote

FAN: 6" Rod Included, FAN: 7ft from floor, Install Sloped Ceiling

Fans should be installed at a minimum of 7 feet from the floor

LED components carry a 5-year limited warranty

Light kit cover included

Merging the best of traditional and modern elements with a sophisticated and streamlined look

Motor carries a lifetime warranty

This item includes a 6" down rod (other lengths of down rods are available)

WiFi Enabled Smart Fan is compatible with your home’s WiFi network

Info & Guides

Click Here to View Spec Sheet

Click Here to View Spec Sheet 1

Click Here to View Installation Manual

Technical Details

Details

Category:

Fans

Subcategory:

Ceiling Fans with Light

Finish:

Nickel /vendors/vendorImages nickel.jpg

Style:

Transitional

Option:

Title 24 /vendors/vendorImages ca title 24 compliant.jpg

Dry Rated

LED

Voltage:

100-120

Glass Finish or Style:

White/Off-White

Lumens:

1101-1600

Kelvin:

2501-3000

Location Rating:

Dry Rated

Smart Home:

Yes

Category:

Fan

Finish:

Brushed Nickel

Style:

Transitional

Option:

LED

Title 24 /vendors/vendorImages ca title 24 compliant.jpg

Family:

Layton

Glass:

White Polycarbonate

Voltage:

120 V

Number of Bulbs:

1 Bulbs

Air Flow Efficiency:

7152

Amperage:

0.5

Blade Finish:

Bleached Ashwood

Blade Pitch:

12.5

Blade Span:

Bulb Dimmable:

Yes

Bulb Hours:

50000

Bulb Type:

LED

Canopy:

6 Dia x 2.25 D

Introduction Date:

01/01/2026

Kelvin:

3000

Light Kit Included:

Yes

Lumens / Light Output:

1320

Material:

Steel

Motor Type:

Ship Carton Height:

Ship Carton Length:

Ship Carton Width:

Ship Weight:

19.5

Vendor Ship Method:

Parcel

Weight:

13.5

Airflow Avg:

4951

AMPS Avg:

0.28

Avg Airflow Efficiency:

176

Avg Energy Use Watts:

Blade Material:

Wood

Blade Sweep:

Blade To Ceiling Height:

10.25

Blades Reversible:

Bulb CRI:

Bulb Included:

Yes

Control Type:

HIRO Control - 6 Speed Reversing

Country of Origin:

China

Dimmer Type:

CL Type (SSL7A)

Efficiency High:

195

Energy Cost Avg:

Energy Cost High:

Energy Use High:

36.6

Fan Control:

Yes

Flush Mount Fan:

Glass Groups:

White

Incandescent Equivalency:

100 W

Install Sloped Ceiling:

Yes

LED:

Yes

Light Kit Adaptable:

Light Kit Included Removeable:

Yes

Light Source:

Integrated LED

Location Rating:

Dry Rated

Max Wattage:

16 W

Motor Fan Speed:

Motor Name:

DC153x16

Number of Blades:

Operating Frequency:

Prop 65 Description:

CALIFORNIA PROP 65: WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Receiver Included:

Yes

Reversing Control:

Yes

RPMS Avg:

101

RPMS High:

151

Safety Rating:

ETL Approved

Slope Degree:

Stand By Power:

0.7

Title 24:

Yes

Uplight 2:

WIFI Control Included:

Yes
